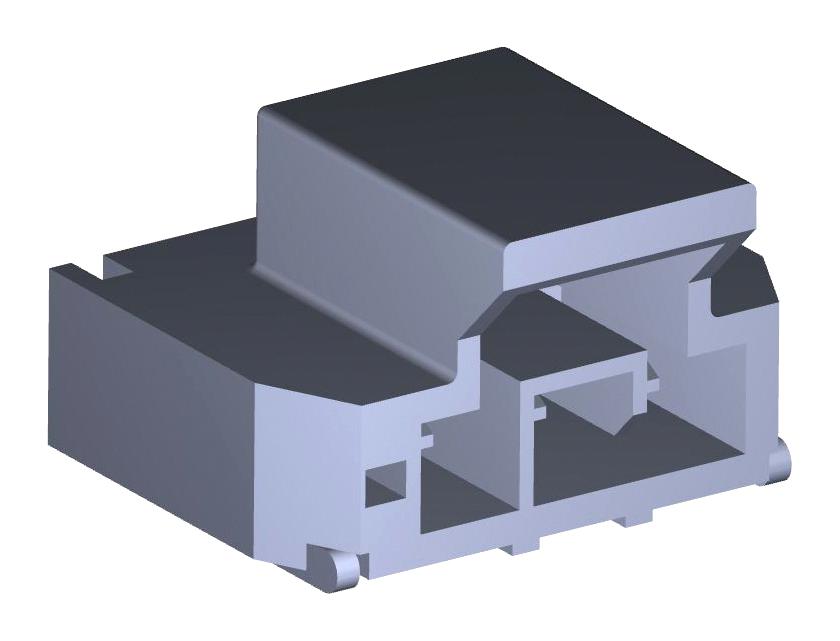

MOLEX 1054301103 Nano-Fit Power Connector
The Nano-Fit Right-Angle Header is surface-mount, featuring a 2.50mm pitch with a single row of three circuits. Crafted from durable liquid crystal polymer with brass contacts and tin plating, it supports up to 6.5A and 250V AC. Its compact design is glow-wire capable, with a black resin housing and an operating temperature range of -40°C to +105°C. The connector is designed for reliable wire-to-board connections, offering up to 25 mating cycles, and is compliant with RoHS and low-halogen standards, ideal for various electronic applications.
MOLEX 1054301103 Nano-Fit Power Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 3
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Resin Material: Liquid Crystal Polymer
- Maximum Current: 6.5A
- Maximum Voltage: 250V AC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
- Glow-Wire Capable: Yes
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
- Net Weight: 0.680g
Buy the Molex Series Nano-Fit Power Connectors: 1054301103
Purchase the Nano-Fit Power Connector online today and enjoy a dependable, high-performance connection solution for your electronic projects. Designed for surface-mount applications, this compact connector features a 2.50mm pitch, robust brass contacts, tin plating for corrosion resistance, and supports currents up to 6.5A at 250V AC. Its glow-wire capability enhances safety, while the durable construction withstands up to 25 mating cycles. Ideal for commercial, industrial, and consumer electronics, this RoHS-compliant connector guarantees quality and reliability in your wiring and assembly tasks.
Order your Molex Series Nano-Fit Power Connectors 1054301103 today and ensure your electronic projects are built with reliable, high-quality connections.
Frequently Asked Questions
Where can I buy MOLEX 1054301103?
You can click on the BUY or RFQ button to purchase 1054301103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054301103?
You can download the 1054301103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054301103?
MOLEX
