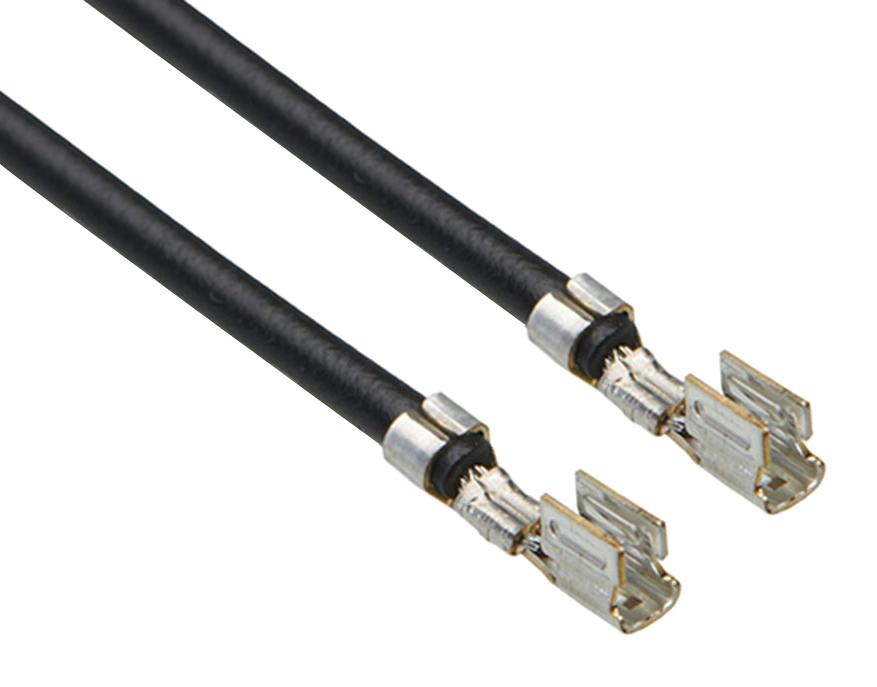

MOLEX 2175102123 L1NK 250 Pre-Crimped Lead
The MOLEX 217510-2123 is a pre-crimped lead assembly specifically engineered for use with L1NK 250 connectors. This assembly provides a ready-to-use connection solution, eliminating the need for on-site crimping. Constructed with a copper alloy and tin plating for both mating and termination, it ensures excellent conductivity and corrosion resistance. The red PVC resin insulation provides durability and insulation. This lead is ideal for various industrial applications where a pre-terminated connection is required, simplifying installation and ensuring consistent performance.
MOLEX 2175102123 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 217510
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250
- circuit_count: 1
- color: Red
- material_metal: Copper Alloy
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: PVC
- cable_length: 225.00mm
- wire_size_awg: 22
- wire_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- wire_insulation_diameter: 1.42mm-1.60mm
- net_weight: 1.357/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- elv_compliance: Not Relevant
- rohs_status: Compliant
- china_rohs: REACH SVHC Not Contained
- halogen_free: Not Low-Halogen
- rohs_phthalates: Not Contained
- upc: 195842119475
- sales_drawing: 2175102121-000
