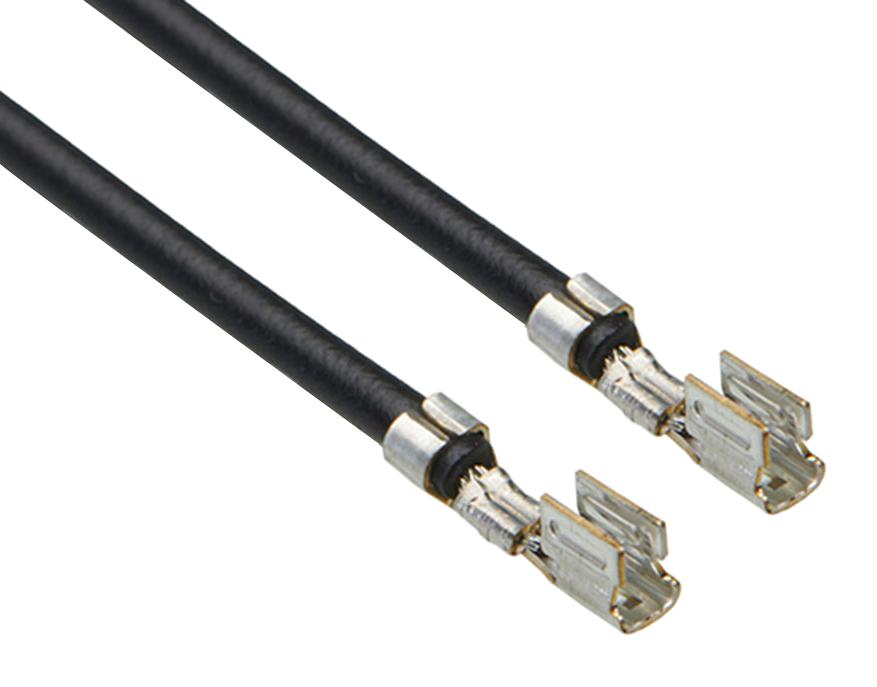

MOLEX 2175102124 L1NK 250 Pre-Crimped Lead
The MOLEX 217510-2124 is a pre-crimped lead assembly specifically engineered for use with L1NK 250 connectors. This component provides a ready-to-use connection solution, eliminating the need for on-site crimping. The lead is 300mm in length, utilizes 22 AWG wire, and is insulated with a red PVC resin. It is designed for reliable signal transmission and power delivery in applications requiring robust and pre-terminated connectivity. The component is RoHS compliant, ensuring adherence to environmental standards.
MOLEX 2175102124 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 217510
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250
- circuit_count: 1
- color: Red
- material_metal: Copper Alloy
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: PVC
- net_weight: 1.757/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 22
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119482
- elv_compliance: Not Relevant
- rohs_status: Compliant
- china_rohs: REACH SVHC Not Contained
- halogen_free: Not Low-Halogen
- rohs_phthalates: Not Contained
- reference_drawing_number: 2175102121-000
