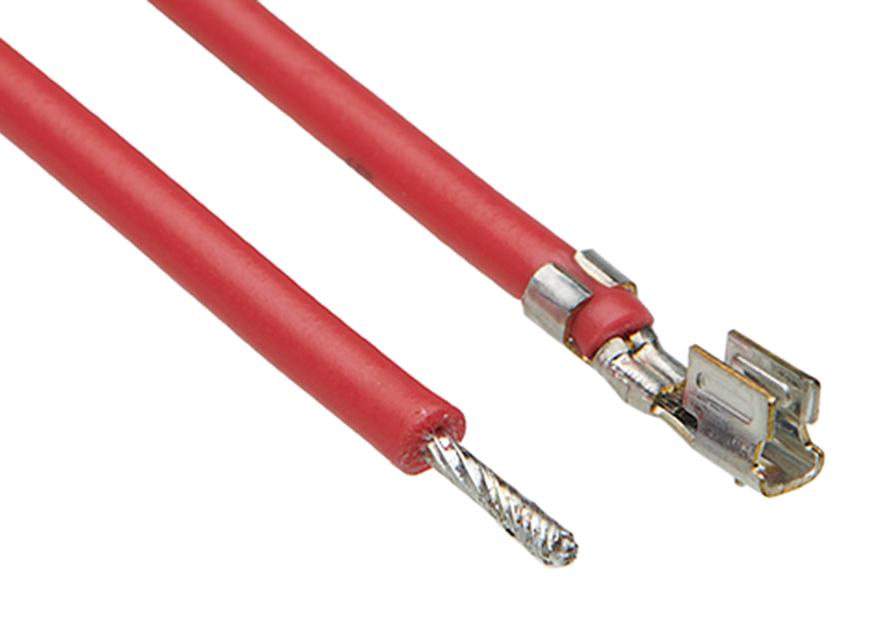

MOLEX 2175112122 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2122 is a pre-crimped lead assembly within the L1NK 250 series, offering a convenient and reliable connection solution. This assembly simplifies integration by providing a pre-terminated lead, eliminating the need for on-site crimping. It's ideal for applications requiring a female-to-pigtail connection with a 150mm lead length and 22 AWG wire gauge, commonly used in industrial automation, power distribution, and other electrical systems. The tin plating on both mating and termination surfaces ensures excellent conductivity and corrosion resistance.
MOLEX 2175112122 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: PVC
- net_weight: 0.905/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 22
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119765
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- drawing_number: 2175112121-000
