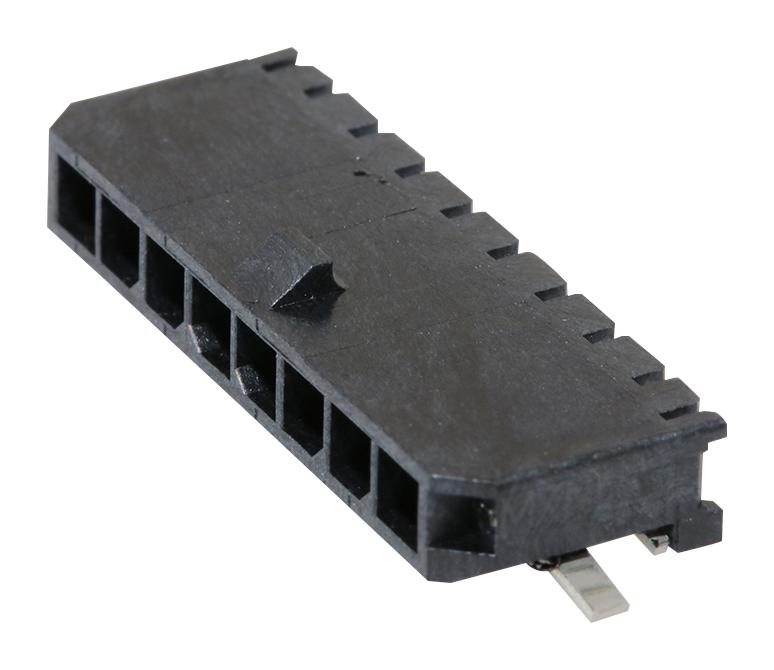

MOLEX 436500813 Micro-Fit 3.0 Header
The MOLEX 43650-0813 is a Micro-Fit 3.0 connector designed for robust wire-to-board connections. This right-angle header features 8 circuits and is constructed with a high-temperature thermoplastic resin and brass material with gold mating plating and tin termination plating. It is rated for a maximum current of 8.5A and a maximum voltage of 600V. The header is glow-wire capable and compliant with various industry standards, making it suitable for applications in household appliances and other electrical equipment. Its right-angle design simplifies PCB layout and reduces strain on connections.
MOLEX 436500813 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 8 Circuits, with Solder Tab, Gold, Glow-Wire Capable, Black
- Circuits (Loaded): 8
- Circuits (maximum): 8
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 1.371/g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Lead-freeProcess Capability REFLOW: 003
- Process Temperature max. C: 260
