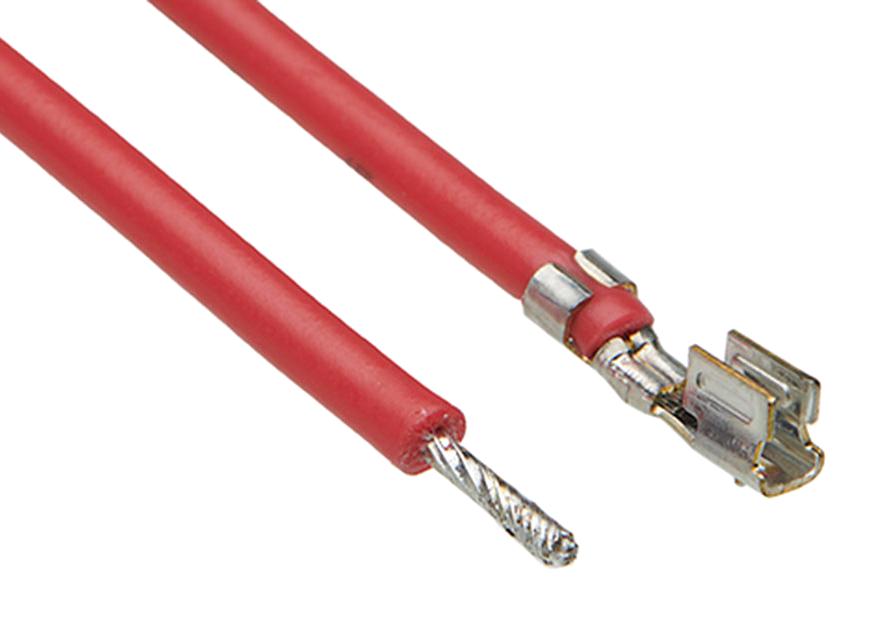

MOLEX 2175112113 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2113 is an off-the-shelf pre-crimped lead assembly specifically engineered for use with L1NK 250 connectors. This assembly provides a convenient and reliable connection solution, eliminating the need for on-site crimping. It is ideal for applications requiring a pre-terminated connection, reducing assembly time and ensuring consistent quality. The lead is constructed with a copper alloy material, tin plating for both mating and termination, and a PVC resin insulation, offering durability and electrical performance.
MOLEX 2175112113 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 1.218/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 24
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119727
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- sales_drawing: 2175112111-000
Buy the 217511-2113 MOLEX L1NK 250 Pre-Crimped Lead | myMectronic
Purchase the MOLEX 217511-2113 L1NK 250 Pre-Crimped Lead securely and reliably online.
Buy Now
