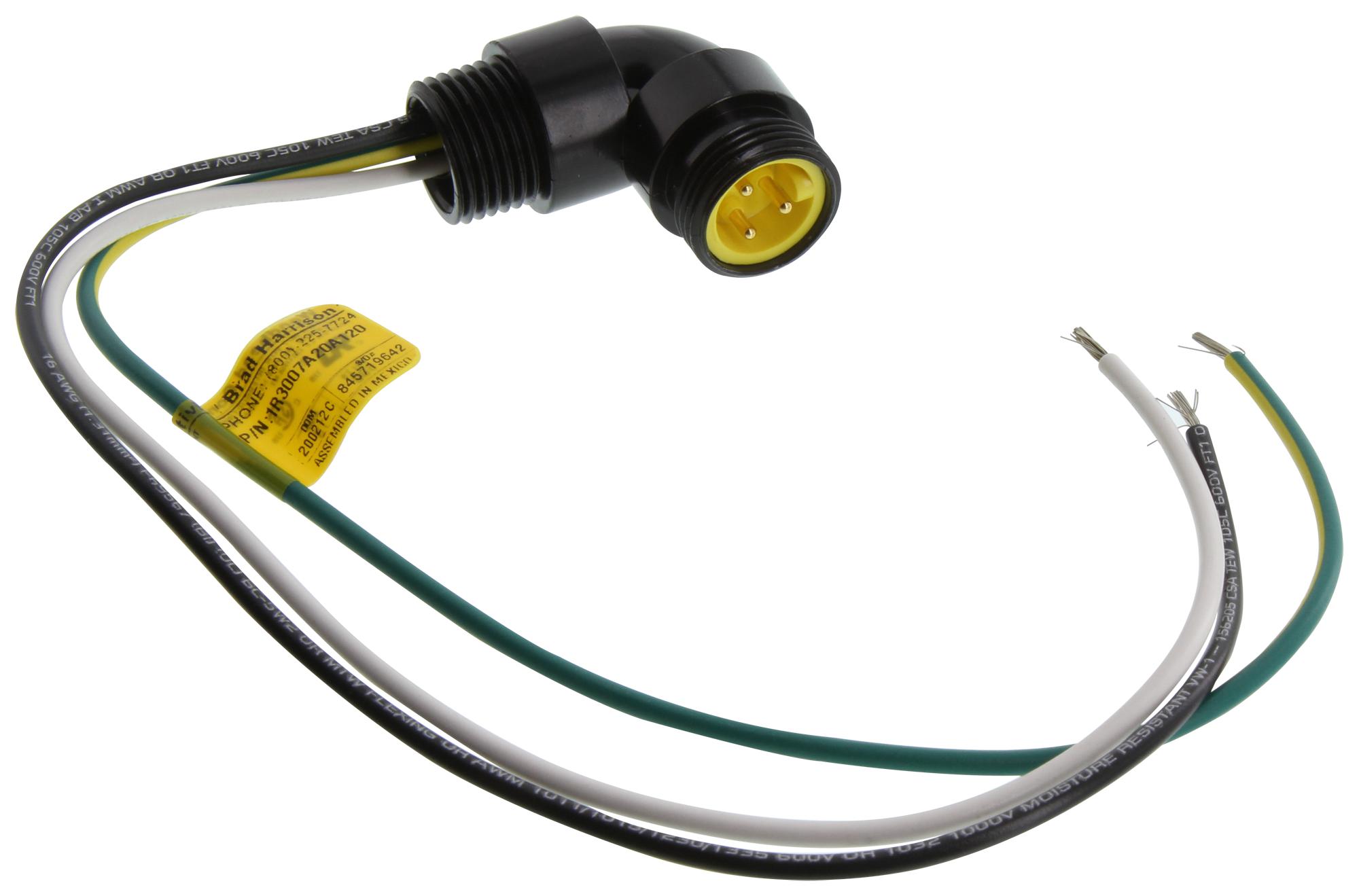

MOLEX 1300130247 Mini-Change Receptacle Connector
The MOLEX 1300130247 is a Mini-Change A-Size Receptacle connector designed for industrial applications. It features a robust zinc die-cast construction with a black epoxy finish, providing excellent durability and protection. The connector offers 3 poles, a 90-degree angle orientation, and 1/2"-14 NPT threads for secure mounting. With a maximum current rating of 13.0A and a voltage rating of 600V AC/DC, it's suitable for a wide range of power transmission needs. It is RoHS compliant and includes 16 AWG leads for flexible wiring options.
MOLEX 1300130247 Mini-Change Receptacle Connector Specifications:
- Product Family: Industrial Receptacles
- Series: 130013
- IP Rating: IP67
- NEMA Rating: NEMA 6
- Overview: Brad Mini-Change Connectors
- Type: Single Ended (pigtail)
- Coupling Type: External Thread
- Gender: Male
- Keyway: Single
- Length: 0.305m
- Material - Component: Zinc Die-Cast with Black Epoxy
- Mounting Thread Size: 1/2" - 14 NPT
- Net Weight: 75.210/g
- Orientation: 90° Angle
- Poles: 3
- Temperature Range - Operating: -20°C to +105°C
- Wire Size AWG: 16
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 600V AC/DC
- Engineering Number: 1R3007A20A120
- Sales Drawing: SD-130013-090
- EU ELV: Not Relevant
- EU RoHS: Compliant with Exemption 6(c)
- REACH SVHC: Not Contained Per - ED/71/2019 (16 July 2019)
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
Buy the 1300130247 MOLEX Mini-Change Receptacle Connector | myMectronic
Purchase the MOLEX 1300130247 Mini-Change Receptacle Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1300130247?
You can click on the BUY or RFQ button to purchase 1300130247 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1300130247?
You can download the 1300130247 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1300130247?
MOLEX
