A Premier B2B Part Search
MOLEX 2175222125 Wire-to-Wire Connector

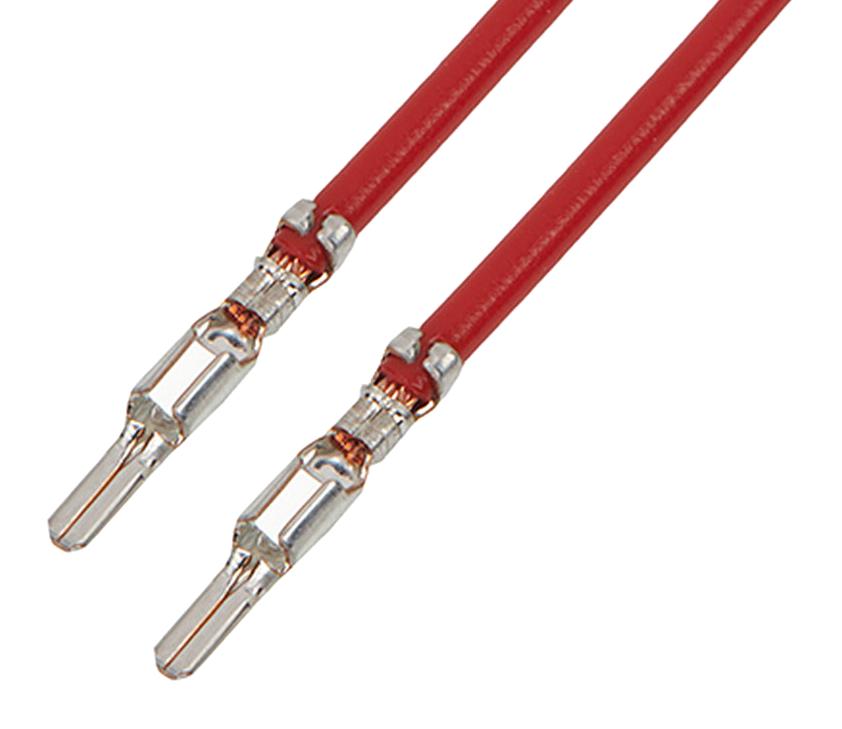

The pre-crimped lead connects two Mizu-P25 male connectors with a 450mm length suitable for wire-to-wire assembly. It is made of phosphor bronze with tin plating, offering reliable electrical connection and corrosion resistance. The assembly features a crimp or compression termination style, compatible with 22 AWG wire, and operates at a maximum voltage of 125V. This RoHS compliant connector is ideal for quick installation in various electronic applications, providing a secure and durable connection with a net weight of approximately 2.473 grams.
MOLEX 2175222125 Wire-to-Wire Connector Specifications:
- Product Family: Signal, Wire-to-Wire
- Application: Assembly Connection
- Cable Length: 450.00mm
- Circuits (Loaded): 1
- Color - Resin: Red
- Gender: Male-Male
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 22
- Wire Insulation Diameter: 1.40-1.90mm
- Voltage - Maximum: 125V
- Net Weight: approximately 2.473 grams
- Termination Interface Style: Crimp or Compression
- Length: 450mm
- Part Number: 2175222125
- RoHS Status: Compliant
Buy the Buy Molex Pre-Crimped Lead Part Number 2175222125 Online
Order the Molex wire-to-wire connector with part number 2175222125 online today. This 450mm pre-crimped lead features a male-to-male Mizu-P25 design, ideal for reliable, corrosion-resistant connections in electronic assemblies. Made from phosphor bronze with tin plating, it ensures excellent electrical conductivity and durability. Suitable for 22 AWG wire, it supports up to 125V and features a quick crimp or compression termination. Perfect for quick, secure, and professional wiring in various electronic applications, improving efficiency and connection quality.
Buy Molex 2175222125 now and experience unmatched reliability and performance with high-quality wire-to-wire connectors for electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 2175222125?
You can click on the BUY or RFQ button to purchase 2175222125 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2175222125?
You can download the 2175222125 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2175222125?
MOLEX
