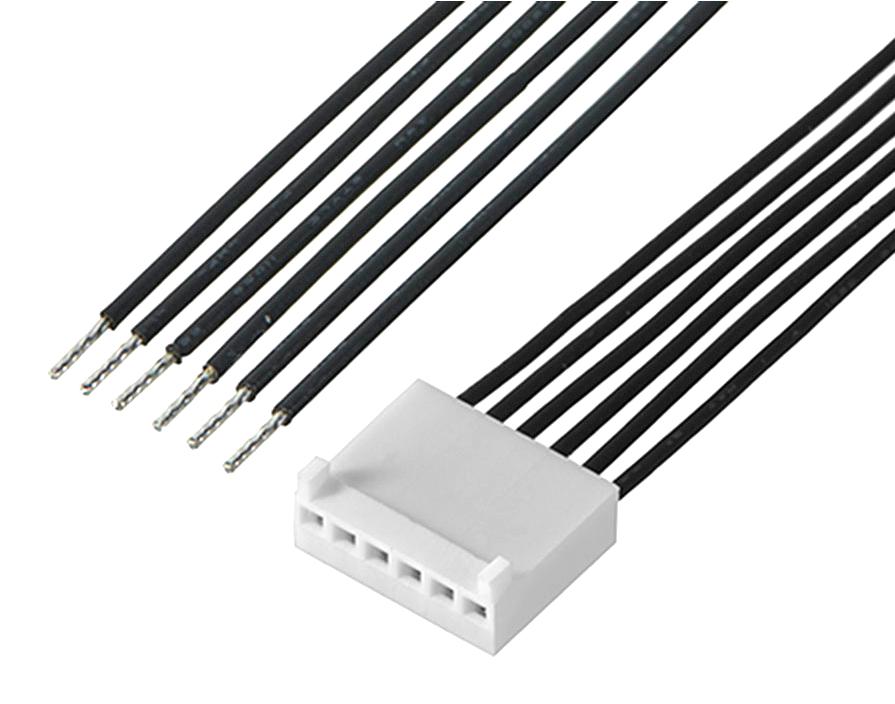

MOLEX 2177971063 KK 254 Cable Assembly
The MOLEX 217797-1063 is a versatile Off-the-Shelf (OTS) cable assembly designed for applications requiring a KK 254-to-Pigtail connection. With a length of 600mm and 6 circuits, this assembly provides a robust and readily available solution. Constructed with brass and nylon materials, and featuring tin plating for both mating and termination interfaces, it ensures reliable signal transmission. The assembly is RoHS compliant and suitable for a wide range of industrial and commercial applications where pre-configured cable solutions are needed.
MOLEX 2177971063 KK 254 Cable Assembly Specifications:
- Assembly Configuration: Dual Ended
- Connectors: KK 254-to-Pigtail
- Connector to Connector: Connector to Connector
- Cable Length: 600.00mm
- Circuits (Loaded): 6
- Color - Resin: Natural (White)
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 16.119/g
- Number of Rows: 1
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 2.540µm
- Single Ended: No
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter max: 1.57mm
- Wire Size AWG: 22
- Wire/Cable Type: UL 11028
- UPC: 195842123120
- Mates With: KK254 PCB Headers 42375, 42377, 42376, 4030, 6373, 6410, 171856, 171857
- Sales Drawing: 2177971061-000
Buy the 217797-1063 MOLEX KK 254 Cable Assembly | myMectronic
Purchase the MOLEX 217797-1063 cable assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2177971063?
You can click on the BUY or RFQ button to purchase 2177971063 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2177971063?
You can download the 2177971063 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2177971063?
MOLEX
