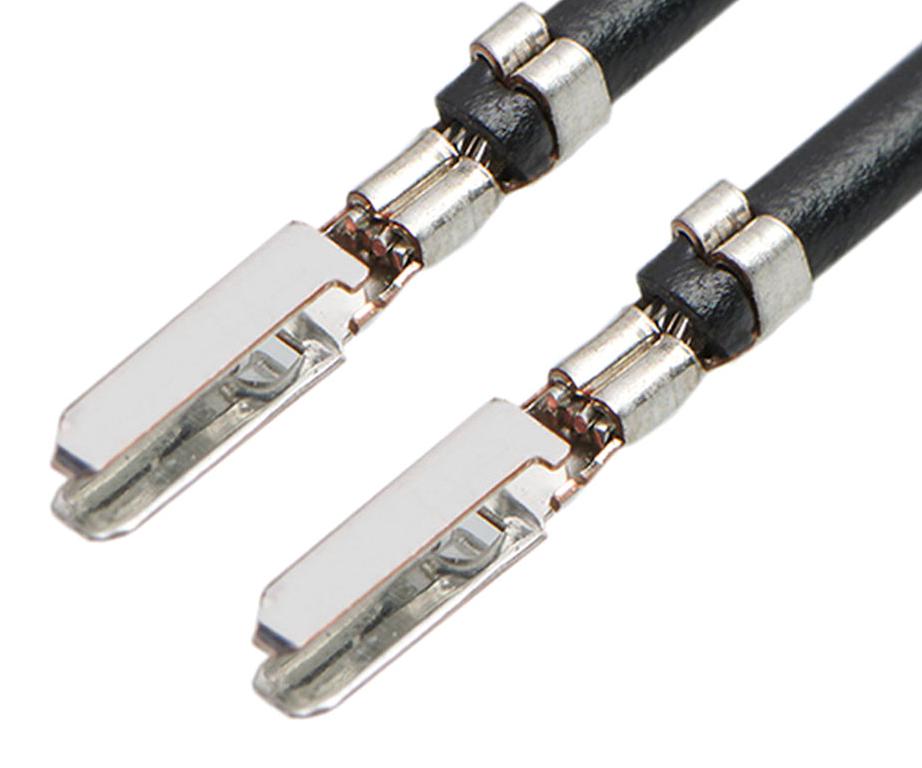

MOLEX 2157111104 CLIK-Mate Pre-Crimped Lead
The MOLEX 215711-1104 is a pre-crimped lead assembly within the CLIK-Mate series, offering a convenient and reliable solution for wire-to-board connections. This assembly features a male-to-pigtail configuration, ensuring compatibility with CLIK-Mate connectors. The tin plating on both mating and termination surfaces provides excellent conductivity and corrosion resistance, making it suitable for signal applications in various industrial settings. Its 300mm length and 28 AWG wire gauge offer flexibility and adequate current-carrying capacity.
MOLEX 2157111104 CLIK-Mate Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: CLIK-Mate-to-CLIK-Mate
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 0.516/g
- packaging_type: Bag
- plating_min_mating: 0.406µm
- plating_min_termination: 0.406µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.78-1.28mm
- wire_size_awg: 28
- wire_cable_type: UL 10002
- current_max_per_contact: 2.0A
- voltage_max: 100V AC (RMS)/DC
- elv: Not Relevant
- rohs: Compliant
- china_rohs: REACH SVHC Not Contained
- halogen_free: Not Low-Halogen
- use_with: CLIK-Mate Housing 502578, 503149
- reference_drawing_number: 2157111101-000
