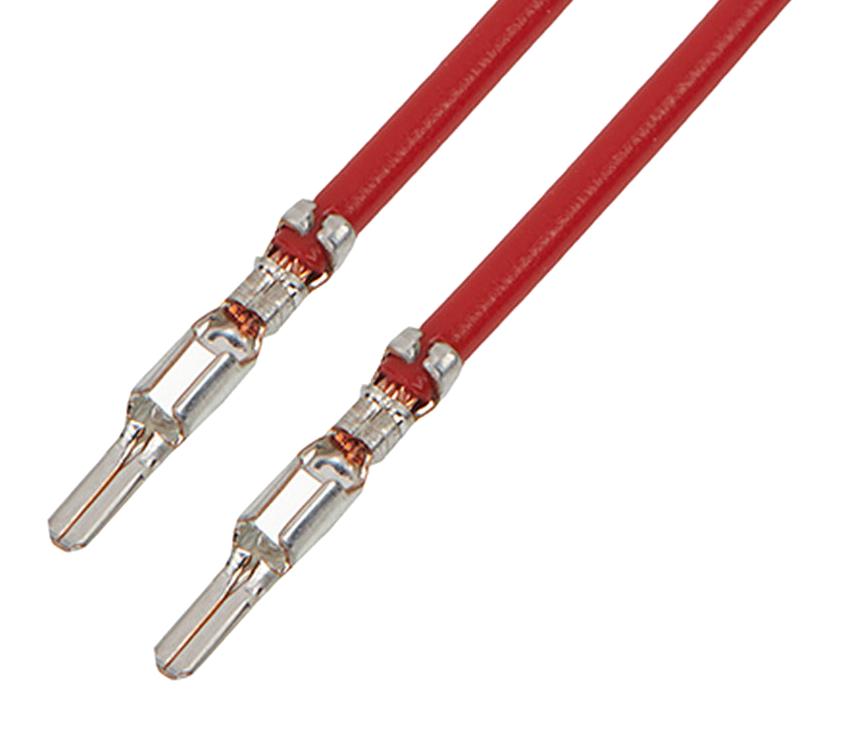

MOLEX 2178422122 Mizu-P25 Pre-Crimped Lead
The MOLEX 217842-2122 is a pre-crimped lead assembly specifically engineered for Mizu-P25 connector systems. This assembly provides a ready-to-use connection solution, eliminating the need for on-site crimping. With a tin plating on both mating and termination interfaces, this lead offers excellent conductivity and corrosion resistance. Its 150mm length and 20 AWG wire gauge make it suitable for a variety of signal transmission applications in wire-to-wire configurations. The red resin color provides easy identification within complex assemblies.
MOLEX 2178422122 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mizu-P25
- cable_length: 150.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Phosphor Bronze
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 1.193/g
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.40-1.90mm
- wire_size_awg: 20
- wire_cable_type: UL 10002
- voltage_maximum: 125V
- upc: 195842150027
- series: 217842
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
