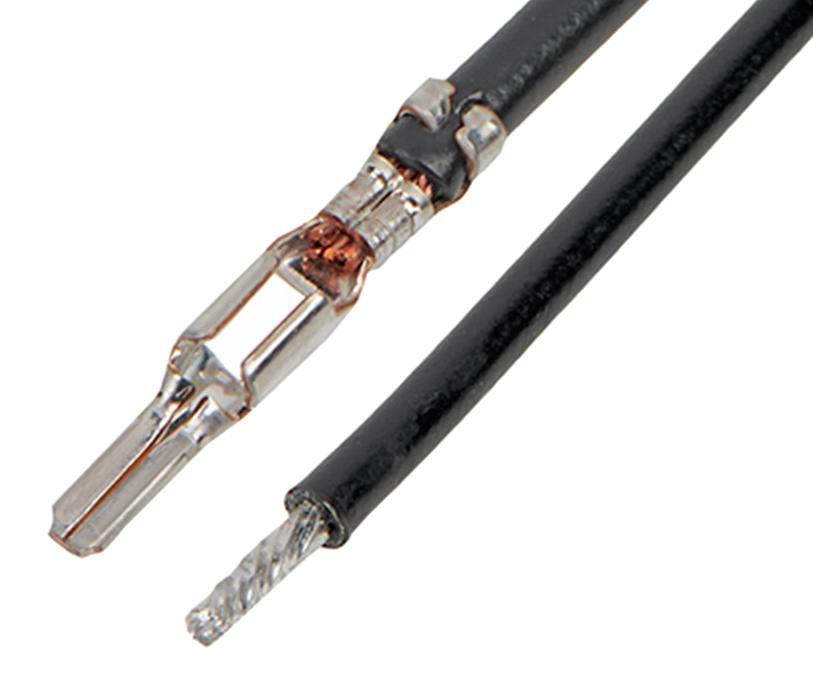

MOLEX 2178431125 Mizu-P25 Pre-Crimped Lead
The MOLEX 217843-1125 is a pre-crimped lead assembly, offering a convenient and reliable solution for wire-to-wire signal connections. This assembly incorporates a Mizu-P25 male connector transitioning to a pigtail, ensuring compatibility with various systems. The tin plating on both mating and termination surfaces provides excellent conductivity and corrosion resistance. Ideal for applications requiring pre-terminated connections, this lead simplifies assembly and reduces labor costs while maintaining high-quality signal integrity.
MOLEX 2178431125 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: Mizu-P25-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 3.017/g
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.40-1.90mm
- wire_size_awg: 20
- wire_cable_type: UL 10002
- voltage_maximum: 125V
- upc: 195842150102
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
