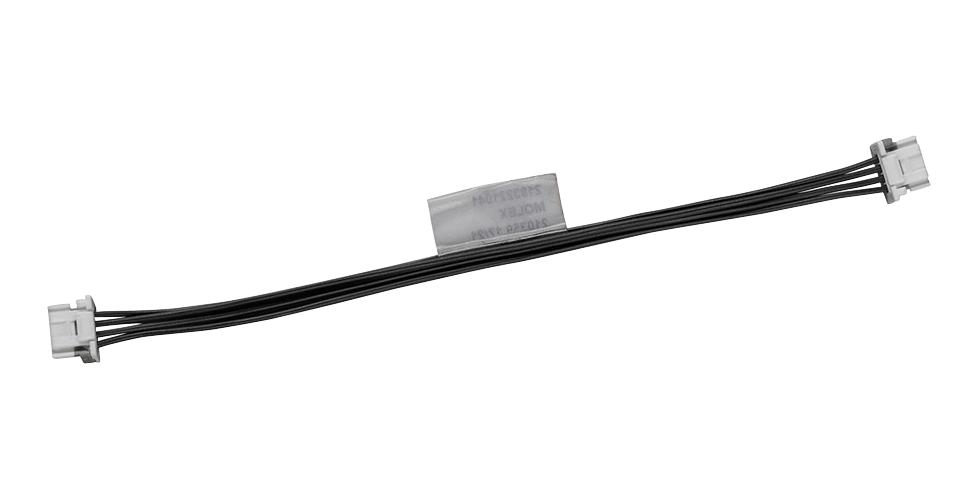

MOLEX 2183221041 Discrete Wire Cable Assembly
Off-the-shelf DuraClik ISL single row tin-plated discrete wire cable assemblies support up to 3A current and accommodate various circuit sizes. They feature an independent secondary lock that detects incomplete terminal insertion, providing up to 50N terminal retention force and aiding in terminal positioning while meeting strict automotive standards. The assemblies include wide solder tabs designed to withstand SAE automotive vibration conditions, offering secure PCB retention capable of withstanding 100N upward pull force. An inner positive lock ensures secure mating, saves space, and prevents latch breakage from wire tangling, making them ideal for automotive, industrial automation, and consumer applications.
MOLEX 2183221041 Discrete Wire Cable Assembly Specifications:
- Connector type: Discrete wire cable assembly
- Pitch: 2.00mm
- Cable length: 150.00mm
- Number of circuits: 4
- Color: White
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PBT
- Current rating: 3A per circuit
- Maximum voltage: 60V AC/DC
- Wire size: 22 AWG
- Wire insulation diameter: 1.30mm
- Wire type: 1x0.35mm FLRY-A
- Operating temperature: -40°C to +105°C
- Retention force: up to 50N
- Mating cycles: Up to 20
- Termination interface: Crimp or Compression
- Contact material: Copper alloy with tin plating
- Housing: White PBT resin
- Application: Automotive, industrial automation, consumer devices
Buy the Molex 2183221041 – Reliable Discrete Wire Cable Assembly for Industrial Applications
Order the Molex 2183221041 Discrete Wire Cable Assembly today and benefit from a robust design supporting up to 3A current, with a secure secondary lock system protecting against incomplete insertions. Featuring a 2mm pitch, high vibration resistance, and durable materials including tin-plated copper alloy contacts, this assembly is perfect for automotive, industrial automation, and consumer electronics. Its easy crimp or compression termination, white PBT housing, and compatibility with DuraClik headers provide flexible installation options, ensuring reliable performance in demanding environments.
Buy Molex 2183221041 now and experience unmatched reliability and performance with secure locking and vibration resistance for industrial applications.
