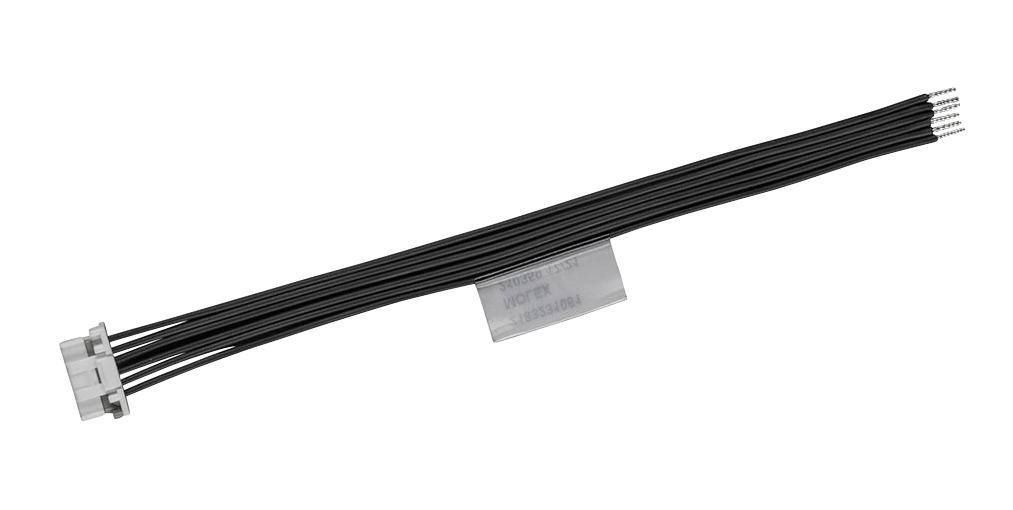

MOLEX 2183231062 Pigtail Connector Assembly
The 218323 series DuraClik ISL-to-Pigtail cable assembly features a 2mm pitch and provides a reliable, off-the-shelf solution for automotive, industrial automation, and consumer electronics. Its design includes an audible click for proper engagement, an enclosed contact to prevent dust and debris, and tangle-free harness assembly. Made with durable copper alloy contacts with tin plating, housed in a white PBT shell, it supports up to 60V AC/DC, with 22 AWG wire, operating from -40°C to +105°C. Suitable for crimp or compression termination, rated for 20 mating cycles.
MOLEX 2183231062 Pigtail Connector Assembly Specifications:
- Pitch: 2.00mm
- Length: 300.00mm
- Circuits: 6
- Color - Resin: White
- Gender: Female-Pigtail
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PBT
- Wire Size AWG: 22
- Wire Insulation Diameter: 1.30mm
- Wire/Cable Type: 1x0.35mm FLRY-A
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 60V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Rated for 20 mating cycles
- Termination: Crimp or Compression
- RoHS Compliant: Yes
- Halogen-Free: No
- Housing Material: PBT
- Rated Voltage: 60V AC/DC
Buy the Molex 218323 Series – Reliable Off-the-Shelf Cable Assembly for Industrial Applications
Secure your electronic connection needs with the Molex Pigtail Connector Assembly. Designed for automotive, industrial automation, and consumer electronics, it features a robust copper alloy contact with tin plating, rated for 60V and 3A. The assembly offers a quick-mate audible click, dust protection, and a 2mm pitch for reliable engagement. With a length of 300mm, it supports crimp or compression termination, operates from -40°C to +105°C, and withstands 20 mating cycles. Perfect for creating durable, efficient wiring harnesses easily.
Buy Molex 218323 series cable assembly now and ensure secure, reliable connections with durable contact design, ideal for automotive, automation, and consumer electronics.
Frequently Asked Questions
Where can I buy MOLEX 2183231062?
You can click on the BUY or RFQ button to purchase 2183231062 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183231062?
You can download the 2183231062 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183231062?
MOLEX
