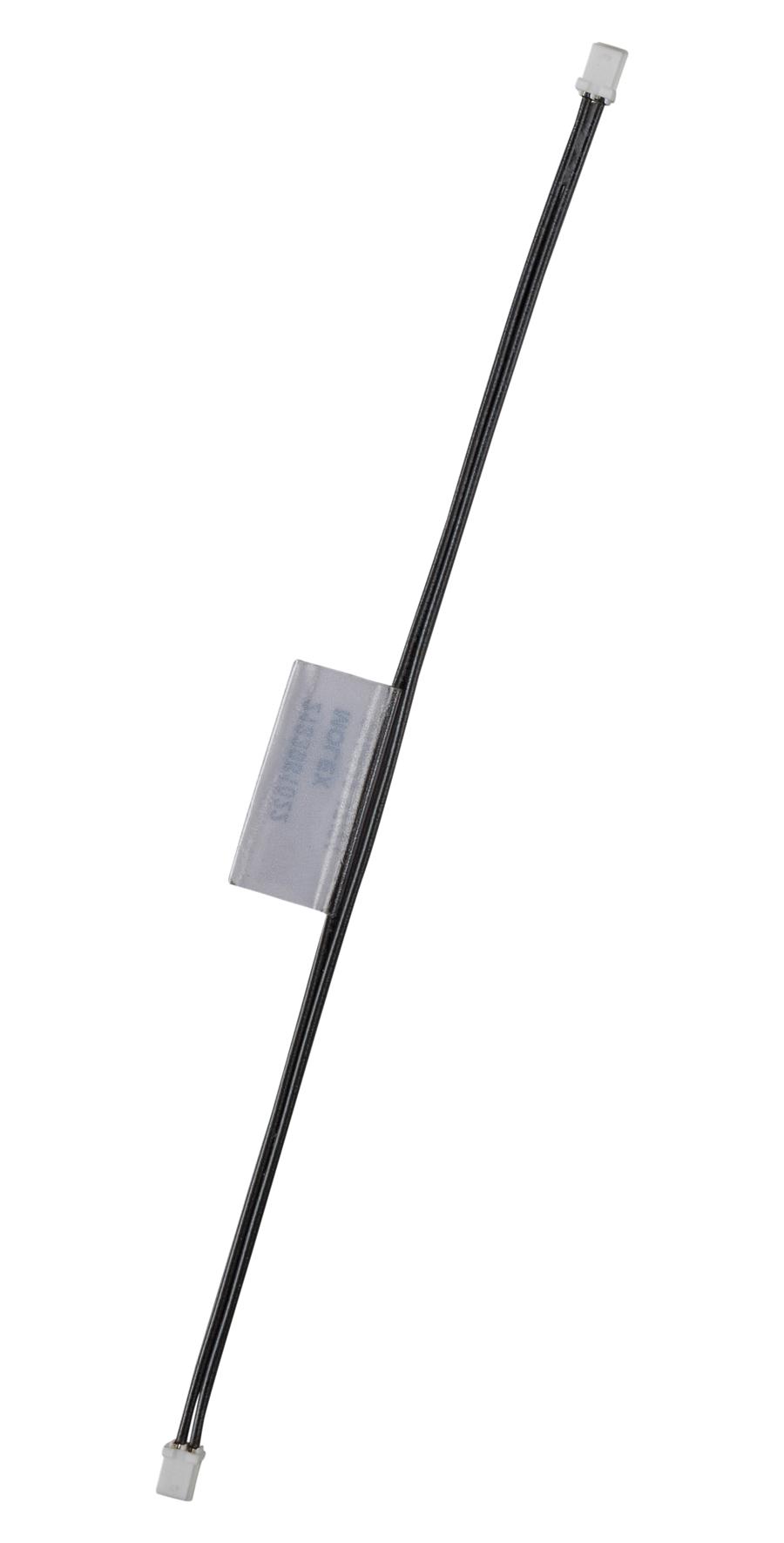

MOLEX 2183961021 Wire-to-Board Connector
The Pico-SPOX 1.5 tin (Sn) discrete wire cable assemblies are off-the-shelf (OTS) products ideal for prototyping and preproduction in consumer electronics, industrial automation, and MedTech industries. These reliable connectors feature a 1.5mm pitch, secure friction lock retention, and are designed for use with 24 AWG UL 10002 wire. Made with nylon housings, phosphor bronze contacts, and tin plating, they support up to 10 mating cycles at temperatures from -10°C to +105°C. Rated for 250VAC and 2.5A per contact, these assemblies comply with UL, CSA, and RoHS standards.
MOLEX 2183961021 Wire-to-Board Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 2
- Cable Length: 100.00mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 2.5A
- Voltage - Maximum: 250V
- Wire Size AWG: 24
- Temperature Range: -10°C to +105°C
- Number of Mating Cycles: 10
- Certification: UL Listed, CSA Certified
- RoHS Compliant: Yes
- Halogen-Free: No
- Housing Color: Natural
- Locking Mechanism: Friction Lock
- Termination Style: Crimp or Compression
- Wire Insulation Diameter: 0.95-1.20mm
Buy the Buy Molex Pico-SPOX Connector Part Number 2183961021 Online
Purchase the Molex Pico-SPOX wire-to-board connector assembly part number 2183961021 online today and ensure your project benefits from secure, space-efficient connections. These assemblies feature a 1.5mm pitch, robust friction lock mechanisms, UL and CSA certification, and support up to 10 mating cycles at temperatures between -10°C and +105°C. With nylon housings and tin-plated phosphor bronze contacts, they deliver dependable performance for consumer electronics, industrial automation, and MedTech applications, fitting 24 AWG UL 10002 wires and rated for 250VAC and 2.5A per contact.
Order your Molex Pico-SPOX connector part number 2183961021 today and enjoy reliable, space-saving wire-to-board connectivity for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2183961021?
You can click on the BUY or RFQ button to purchase 2183961021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183961021?
You can download the 2183961021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183961021?
MOLEX
