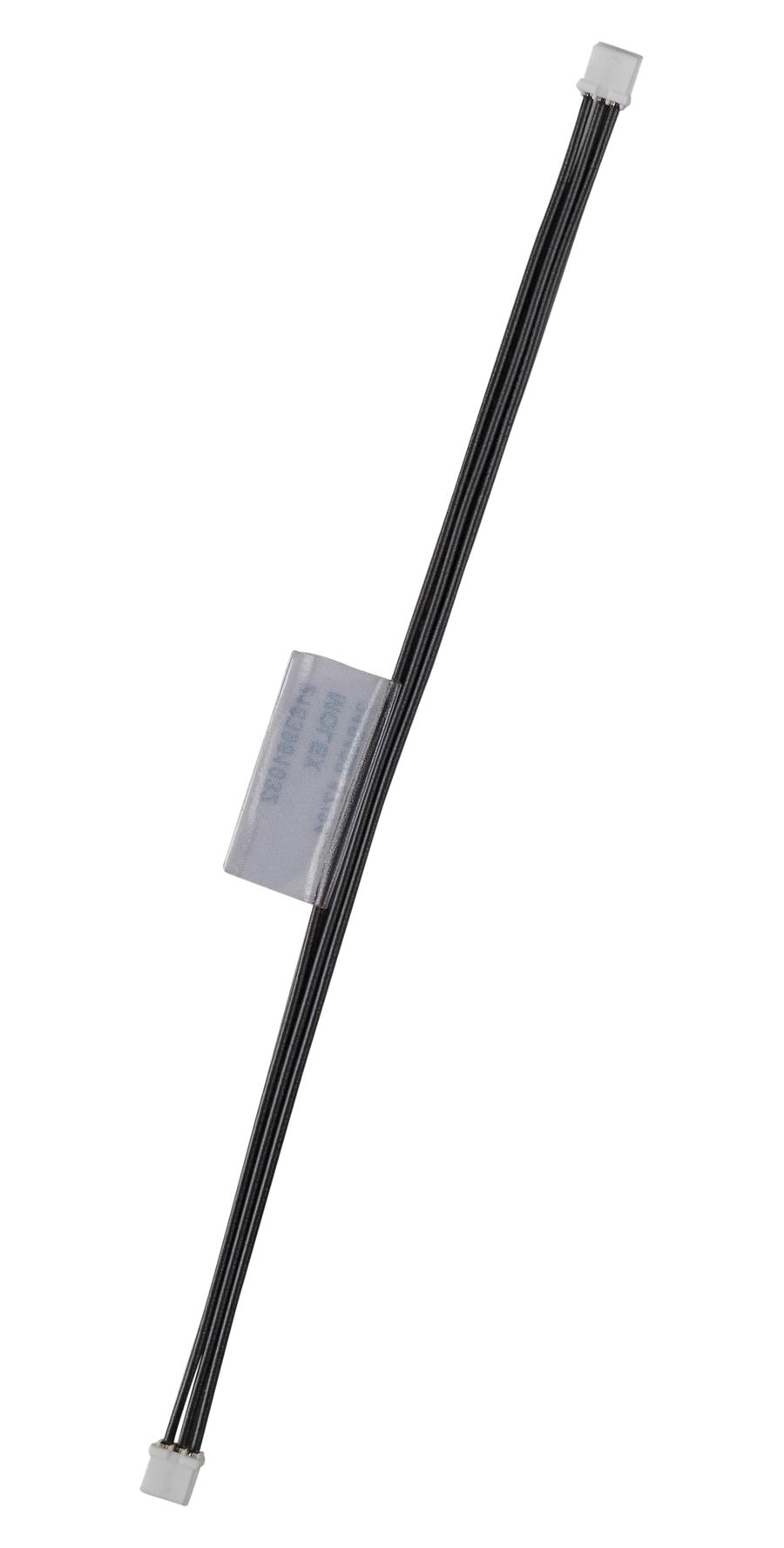

MOLEX 2183961030 Wire-to-Board Connector System
The Pico-SpoX 1.5 tin cable assemblies are off-the-shelf products designed for quick prototyping and preproduction. Featuring a 1.5mm pitch connector with a vertical and right-angle single-row header, these assemblies have a friction lock for secure mating and terminal retention. Built with UL and CSA certifications, they support up to 250VAC and 2.5A per contact. Made with nylon housing, phosphor bronze contacts, and UL 10002 24AWG wire, they are rated for -10°C to +105°C, offering reliable performance for consumer electronics, industrial automation, and MedTech applications.
MOLEX 2183961030 Wire-to-Board Connector System Specifications:
- Pitch: 1.5mm
- Number of Circuits: 3
- Cable Length: 50.00mm
- Wire Size: 24AWG
- Wire Insulation Diameter: 0.95-1.20mm
- Voltage Rating: 250VAC
- Current per Contact: 2.5A
- Material - Contact: Phosphor Bronze
- Plating: Tin
- Housing Material: Nylon
- Temperature Range: -10°C to +105°C
- Number of Mating Cycles: Up to 10
- Color: Natural
- Connector Type: Discrete Wire Assembly
- Application: Consumer electronics, industrial automation, MedTech
Buy the Buy Molex Pico-SpoX Wire-to-Board Part Number 2183961030 Online
Purchase the Molex Pico-SpoX 1.5mm wire assembly online today for reliable, quick solutions for prototyping and preproduction projects. Featuring a secure friction lock, UL and CSA certifications, and support for 250VAC and 2.5A per contact, this connector system ensures consistent performance. Its nylon housing, phosphor bronze contacts with tin plating, and rated temperature range from -10°C to +105°C make it suitable for consumer electronics, industrial automation, and MedTech applications. Get yours now for efficient, safe, and easy assembly.
Buy Molex 2183961030 now and experience unmatched reliability and performance with secure locking for prototyping and preproduction electronics.
