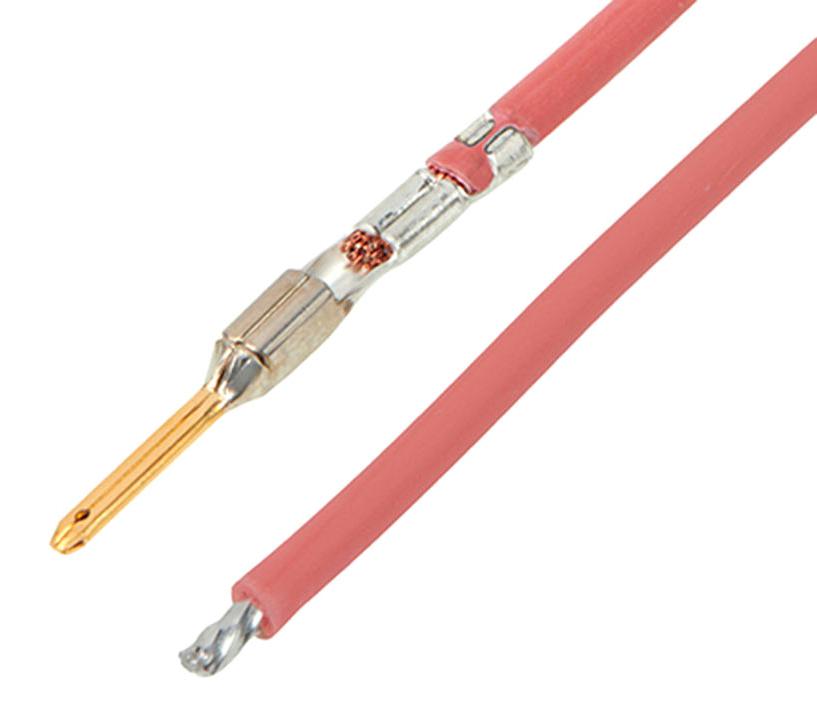

MOLEX 2163032222 MX150 Pre-Crimped Lead
The MOLEX 216303-2222 is an off-the-shelf pre-crimped lead assembly, specifically designed for power applications and wire-to-board or wire-to-wire connections. It utilizes an MX150 terminal-to-pigtail configuration with gold plating for enhanced conductivity and corrosion resistance. The lead is 150mm in length, constructed with 14 AWG TXL wire, and features a red resin color. This assembly simplifies integration and ensures reliable electrical connections in a variety of industrial and commercial settings.
MOLEX 2163032222 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: High Performance Alloy (HPA)
- plating_mating: Gold
- net_weight: 4.057/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL
- current_maximum_per_contact: Contact Molex
- voltage_maximum: 14V DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- halogen_free: Low-Halogen
- upc: 195842071575
- use_with_housing: MX150 Dual Row Housing 33482, MX150 Single Row Housing 33481, MX150 Hybrid Housing 33486
- sales_drawing: 2163031221-000
