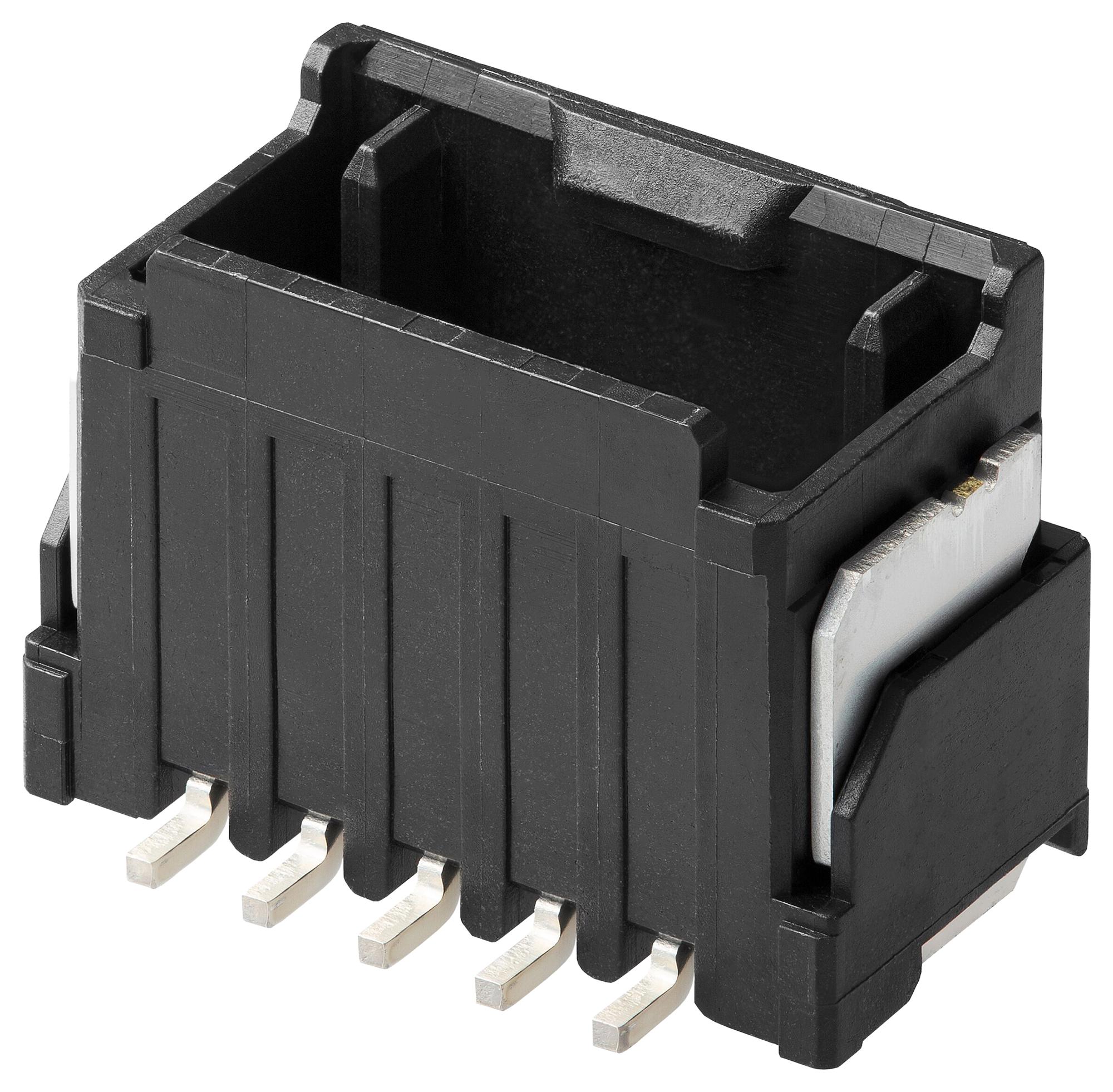

MOLEX 2170630087 Micro-One Wire-to-Board Header
The MOLEX 217063-0087 is a Micro-One wire-to-board header, part of the 217063 series, engineered for robust and reliable connections in wire-to-board applications. This header offers a vertical orientation and a 2.00mm pitch, accommodating a range of PCB designs. Its glow-wire capable construction and tin-bismuth plating ensure performance and longevity. The header is designed to mate with Micro-One receptacle housings, providing a complete connection solution for various industrial and commercial electronics.
MOLEX 2170630087 Micro-One Wire-to-Board Header Specifications:
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Header, Vertical, 2.00mm Pitch, Single Row, Glow-Wire Capable, 8 Circuits, Tin-Bismuth Plating, Black, with Cover Tape
- series: 217063
- circuits_loaded: 8
- circuits_maximum: 8
- color_resin: Black
- durability_mating_cycles: 30
- glow_wire_capable: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating: Tin-Bismuth
- material_resin: Polyamide
- net_weight: 1316.286/mg
- number_of_rows: 1
- orientation: Vertical
- pcb_retention: Yes
- pitch_mating_interface: 2.00mm
- polarized_to_pcb: Yes
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 4.0A
- voltage_maximum: 250V AC (RMS)/DC
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Not Contained Per - D(2020)9139-DC (19 Jan 2021)
- halogen_free_status: Not Low-Halogen
- mates_with: Micro-One Receptacle Housing 205979
