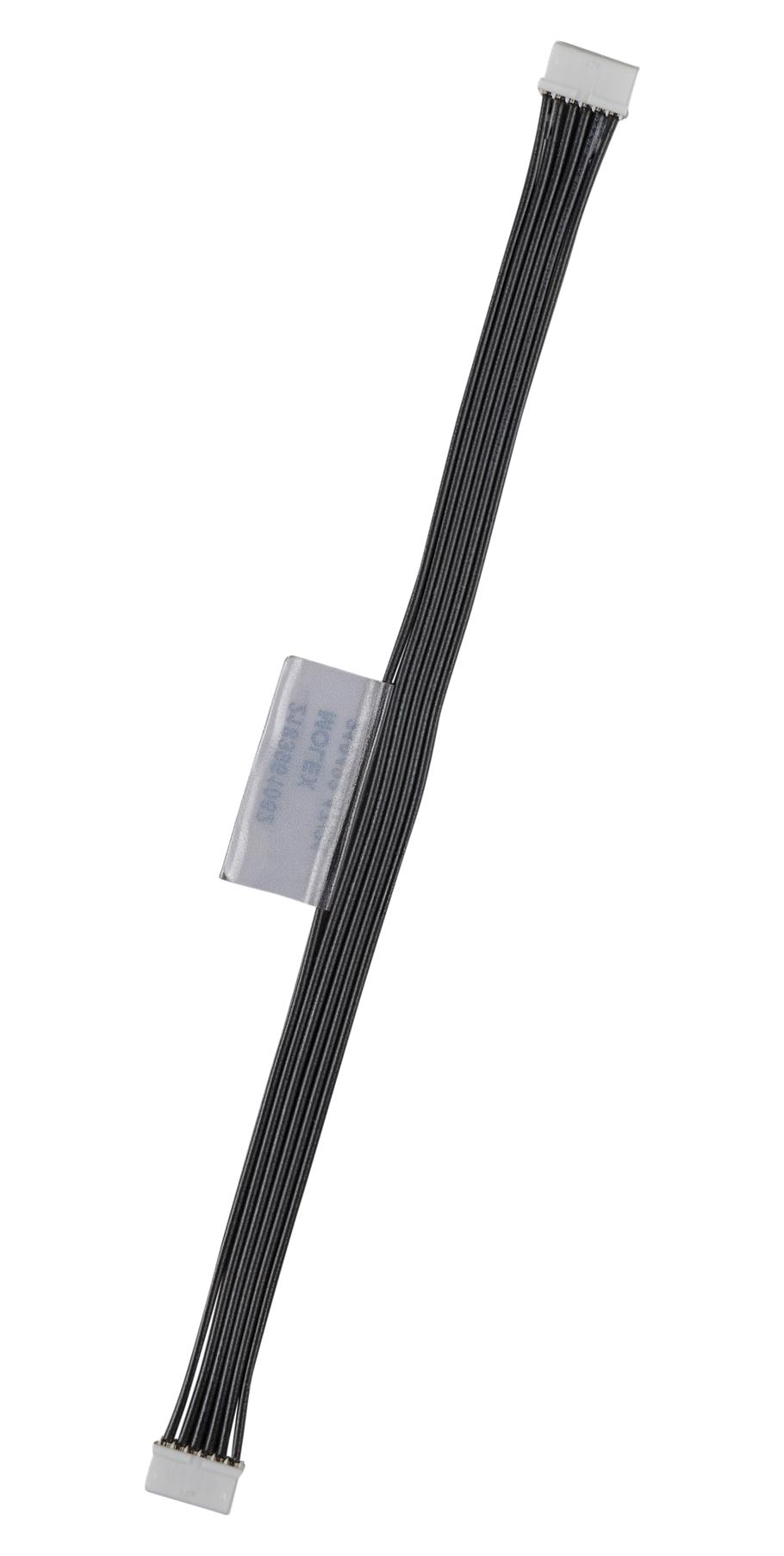

MOLEX 2183961063 Pico-SPOX Cable Assembly
The MOLEX 218396-1063 is a Pico-SPOX wire-to-board connector system designed for reliable signal transmission in various applications. This cable assembly features a 1.50mm pitch, 6 circuits, and a 300.00mm length, making it suitable for connecting boards and wires. The female-to-female configuration and tin plating ensure a secure and corrosion-resistant connection. It is ideal for applications requiring compact and robust wire-to-board connectivity.
MOLEX 2183961063 Pico-SPOX Cable Assembly Specifications:
- overview: Pico-SPOX Wire-to-Board Connector System
- product_family: Cable Assemblies
- series: 218396
- application: Signal, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector
- product_name_description: Pico-SPOX-to-Pico-SPOX Off-the-Shelf (OTS) Cable Assembly
- cable_length: 300.00mm
- circuits_loaded: 6
- color_resin: Natural
- material_metal: Phosphor Bronze
- material_plating: Tin (Sn)
- material_resin: Nylon
- net_weight: 4.750/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 1.50mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.95-1.20mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_maximum_per_contact: 2.5A
- voltage_maximum: 250V
- upc: 195842352186
- material_info: Not Contained Per - D(2021)4569-DC
- halogen_free_status: Not Low-Halogen
- drawing_number: 2183961060-000
