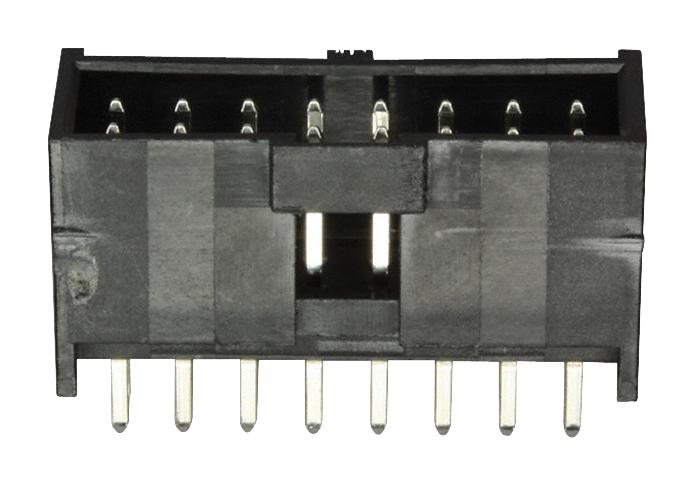

MOLEX 901301130 PCB Header
The C-Grid III Header is a dual-row, vertical, shrouded PCB connector designed for signal and wire-to-board applications. Made from durable polyester resin with brass metal contacts, it features tin plating for reliable connections, supports up to 30 circuits, and provides a maximum current of 3.0A per contact. With a pitch of 2.54mm, operating temperature range from -55°C to +125°C, and compliant with RoHS and UL standards, it ensures high durability and secure mating. Ideal for versatile industrial and electronic assemblies requiring high-performance interconnect solutions.
MOLEX 901301130 PCB Header Specifications:
- Number of Circuits: 30
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Durability (mating cycles): 30
- Flammability: 94V-0
- Operating Temperature Range: -55°C to +125°C
- Current per Contact: 3.0A
- Maximum Voltage: 350V AC/DC
- Pitch - Mating Interface: 2.54mm
- Pitch - Termination Interface: 2.54mm
- PCB Thickness - Recommended: 1.60mm
- Termination Style: Through Hole
- Guide to Mating Part No: 90142
- Housing: Shrouded, Closed Ends
- Lock to Mating Part: Yes
- Stackable: No
Buy the Molex 901301130 – Reliable PCB Interconnects for Industrial Applications
Purchase Molex 901301130 online today and ensure your electronic or industrial projects benefit from high-quality, durable PCB interconnects. With a 30-circuit configuration, 2.54mm pitch, and UL-certified construction, this header guarantees secure connections and reliable performance across a wide temperature range. Its tin-plated brass contacts support up to 3A per contact, making it suitable for demanding signal and power applications. Conveniently available for quick delivery, order now to enhance your manufacturing efficiency and product quality.
Buy Molex 901301130 now and experience unmatched reliability and performance in your industrial and electronic assembly projects.
Frequently Asked Questions
Where can I buy MOLEX 901301130?
You can click on the BUY or RFQ button to purchase 901301130 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901301130?
You can download the 901301130 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901301130?
MOLEX
