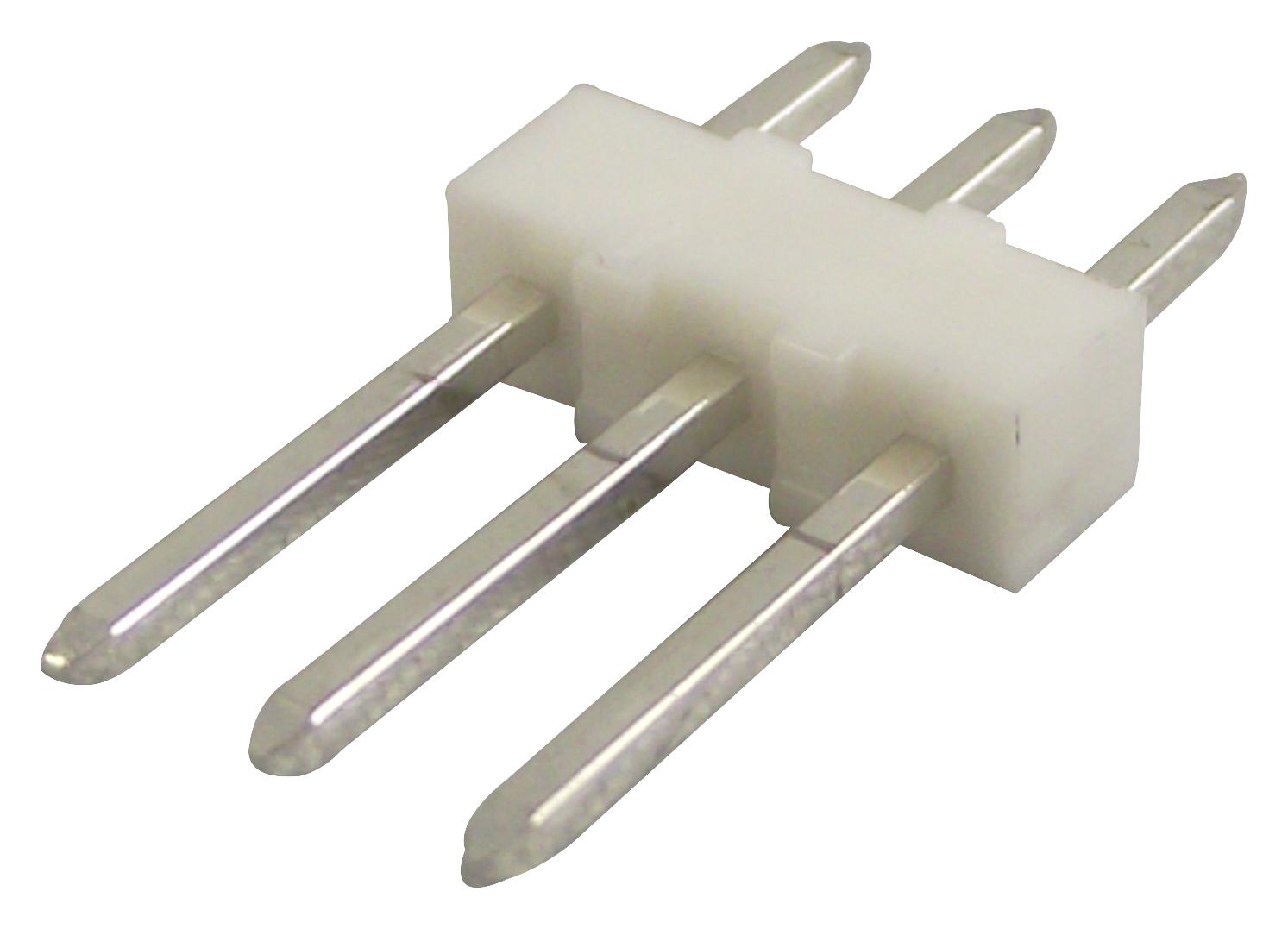

MOLEX 22032031 Wire-to-Board Connector
The Molex KK 254 Wire-to-Board Header is a reliable and compact connector designed for board-to-board and signal transmission applications. Made from durable PA polyamide nylon with tin plating, it features a vertical orientation with three circuits, ensuring secure and efficient connections. Suitable for a maximum operating voltage of 500V and electrical current of 4.0A per contact, it supports up to 25 mating cycles. Its 2.54mm pitch and 3.43mm tail length make it ideal for various industrial and electronic equipment. Certified for UL and CSA, this high-quality header balances durability and performance for demanding environments.
MOLEX 22032031 Wire-to-Board Connector Specifications:
- Circuits (Loaded): 3
- Circuits (Maximum): 3
- Color - Resin: Natural (White)
- Durability (Mating Cycles Max): 25
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PA Polyamide Nylon
- Net Weight: 0.206 grams
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.43mm
- PCB Locator: None
- PCB Retention: No
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Pitch - Termination Interface: 2.54mm
- Plating Min - Mating: 5.080um
- Polarized to Mating Part: No
- Polarized to PCB: No
- Shrouded: No
- Stackable: No
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: -55°C to +105°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 500V
- Process Temperature Max: 235°C
Buy the Molex 22032031 – Reliable Wire-to-Board Connector for Industrial Applications
Secure your electronic projects with the Molex 22032031 wire-to-board connector. Featuring a vertical design, 3 circuits, tin-plated contacts, and a 2.54mm pitch, it provides reliable electrical connections. Certified for UL and CSA, it supports up to 4.0A per contact and a maximum voltage of 500V, ensuring safety and durability in industrial environments. With a recommended operating temperature range of -55°C to +105°C, this connector is suitable for demanding applications requiring high performance and long-lasting connections. Buy online today for fast, dependable delivery.
Order your Molex Series4030 22032031 today and give your projects the dependable quality they deserve with this high-performance wire-to-board header.
Frequently Asked Questions
Where can I buy MOLEX 22032031?
You can click on the BUY or RFQ button to purchase 22032031 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 22032031?
You can download the 22032031 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 22032031?
MOLEX
