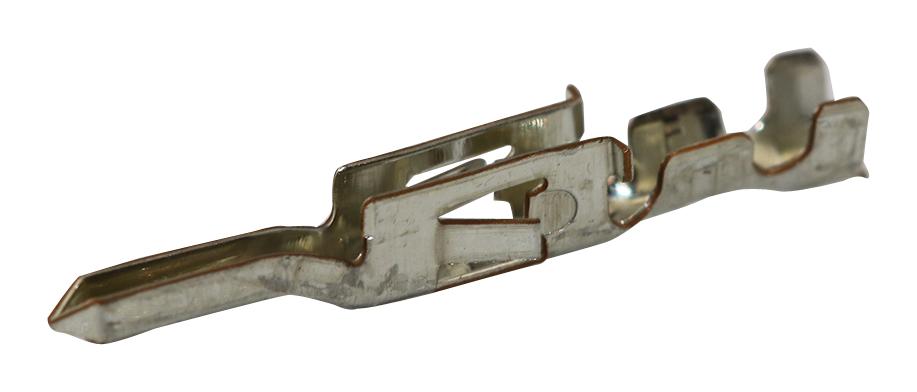

MOLEX 39000084 Mini-Fit Power Terminal
This Mini-Fit Jr. male crimp terminal, made of tin over phosphor bronze, is designed for 16 AWG wires, providing reliable crimp connections in power and wire-to-wire applications. It supports up to 9.0A current and 600V maximum voltage, with a mating cycle durability of 30. The terminal features tin-plated surfaces on both mating and termination interfaces, ensuring corrosion resistance and consistent electrical contact. Packaged in bags, it is compatible with Mini-Fit crimp and plug housing components, suitable for high-quality electrical assemblies requiring secure and durable crimp connections.
MOLEX 39000084 Mini-Fit Power Terminal Specifications:
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 16
- Wire Size mm: 1.80-3.10mm
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Durability (mating cycles max): 30
- Packaging Type: Bag
- Net Weight: 0.120 grams
- Termination Interface: Style: Crimp or Compression
- Plating min - Mating: 0.914um, 3.048um
- Plating min - Termination: 0.914um, 3.048um
Buy the Buy Molex Mini-Fit Jr. Part Number 0039000084 Online
Purchase Molex Mini-Fit Power Terminal 0039000084 today for secure, high-quality crimp connections suitable for power applications. Designed for 16 AWG wire, rated at 9A and 600V, it features tin over phosphor bronze for excellent corrosion resistance. This terminal supports up to 30 mating cycles and is compatible with Mini-Fit crimp and plug housings, ensuring reliable performance in electrical assemblies. Order online now to benefit from fast delivery and quality assurance for your power and wire-to-wire connection needs.
Get Molex 0039000084 today—built for reliable power connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 39000084?
You can click on the BUY or RFQ button to purchase 39000084 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39000084?
You can download the 39000084 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39000084?
MOLEX
