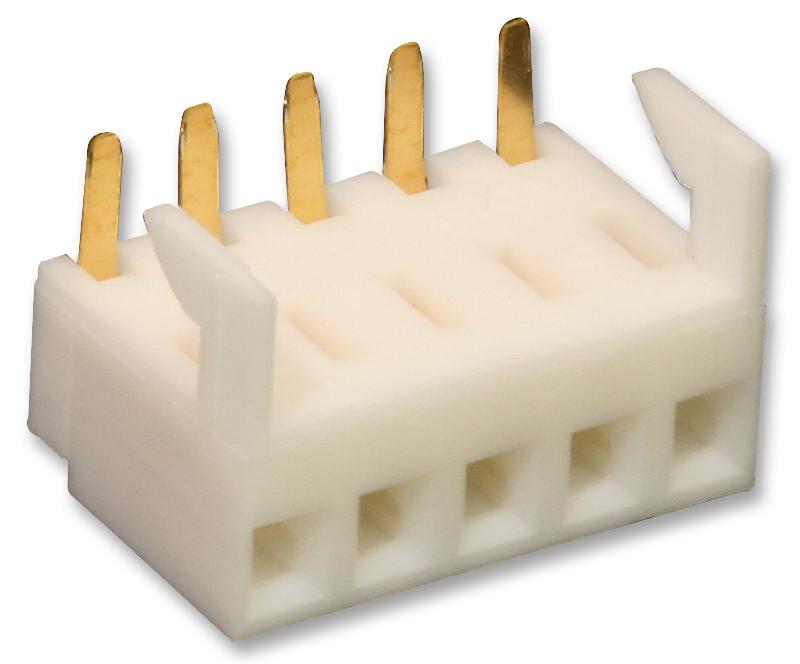

MOLEX 22162050 KK 254 PC Board Connector
The MOLEX 22-16-2050 is a KK 254 PC Board Connector, offering a robust solution for board-to-board signal transmission. Its right-angle configuration and end-to-end stackable design make it suitable for a variety of applications. The connector incorporates 0.38µm gold plating on the mating interface and tin plating on the termination interface, ensuring excellent electrical contact and solderability. Constructed with brass and nylon materials, it provides durability and reliable performance in demanding environments. It is RoHS compliant and features a low-halogen status.
MOLEX 22162050 KK 254 PC Board Connector Specifications:
- status: Active
- overview: KK Interconnect System - Molex
- description: KK 254 PC Board Connector, Right-Angle, End-to-End Stackable, 0.38µm Gold, 5 Circuits
- application: Board-to-Board, Signal
- circuits_loaded: 5 Circuits (maximum)
- color_resin: Natural (White)
- flammability: 94V-0
- glow_wire_capable: No
- guide_to_mating_part: None
- lock_to_mating_part: No
- material_metal: Brass
- material_plating_mating: Gold (0.381µm min)
- material_plating_termination: Tin (2.540µm min)
- material_resin: Nylon
- net_weight_g: 0.531
- number_of_rows: 1
- orientation: Right Angle
- pc_tail_length_mm: 3.35
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 2.54
- pitch_termination_interface_mm: 2.54
- polarized_to_pcb: Yes
- temperature_range_operating: See Product Specification
- termination_interface_style: Through Hole
- current_max_per_contact_a: 2.5
- grounding_to_pcb: No
- voltage_max_v: 500
- duration_at_max_process_temp_seconds: 005
- lead_free_process_capability_wave: WAVE
- max_cycles_at_max_process_temp: 001
- process_temperature_max_c: 235
- engineering_number: A-4455-AZ05A(208)
- upc: 800754931823
- series: 4455
- mates_with: KK Header 4094, 42376, 42375, 42377, 4030, 171856, 171857
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
