MOLEX 2153281021 Mini-Fit Power Connector

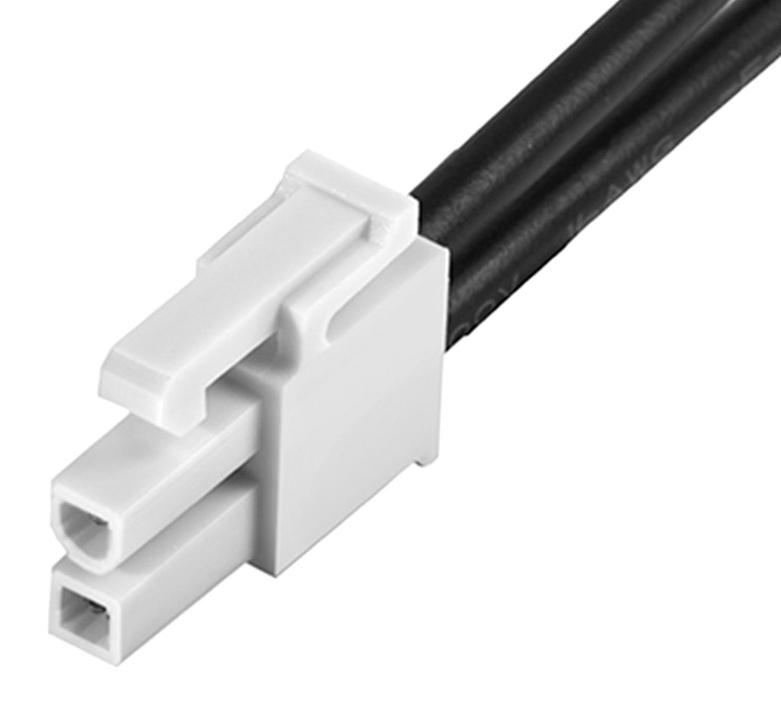

This Mini-Fit Jr. Male-to-Pigtail Off-the-Shelf Cable Assembly is designed for power applications, featuring a dual-row, 150mm length, and tin plating. Made from durable nylon resin, it supports 16 AWG wire sizes with a maximum current of 9.0A and voltage rating of 600V. The assembly includes a male connector with a lock to mate securely with Mini-Fit Jr. receptacles. Suitable for wire-to-wire connections, this crimp or compression termination assembly is RoHS and REACH compliant, ensuring high performance and safety in power distribution systems.
MOLEX 2153281021 Mini-Fit Power Connector Specifications:
- Cable Length: 150.00mm
- Number of Rows: 2
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Size AWG: 16
- Wire Insulation Diameter: 1.80-3.10mm
- Maximum Current: 9.0A
- Maximum Voltage: 600V
- Pitch - Mating Interface: 4.20mm
- Reference - Drawing Numbers: 2153281021-000
- RoHS Compliant, REACH SVHC Not Contained, Halogen-Free
- Application: Power, Wire-to-Wire
- Termination Style: Crimp or Compression
Buy the Buy Molex Mini-Fit Jr. Part Number 2153281021 Online
Purchase the Molex Mini-Fit Jr. power connector assembly online today. Designed for power applications, it features a dual-row 150mm length, tin-plated brass contacts, and nylon housing for durability. Supports 16 AWG wire size, with a maximum current of 9A and voltage of 600V, making it ideal for power distribution, industrial, or electronic projects. RoHS and REACH compliant, this assembly ensures safety and reliability in demanding electrical environments, and is compatible with Mini-Fit Jr. receptacles for secure, long-lasting connections.
Get Molex Mini-Fit Jr. 2153281021 today—built for power distribution, durability, and reliable wire-to-wire connections.
Frequently Asked Questions
Where can I buy MOLEX 2153281021?
You can click on the BUY or RFQ button to purchase 2153281021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153281021?
You can download the 2153281021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153281021?
MOLEX
