MOLEX 22162060 PCB Connector

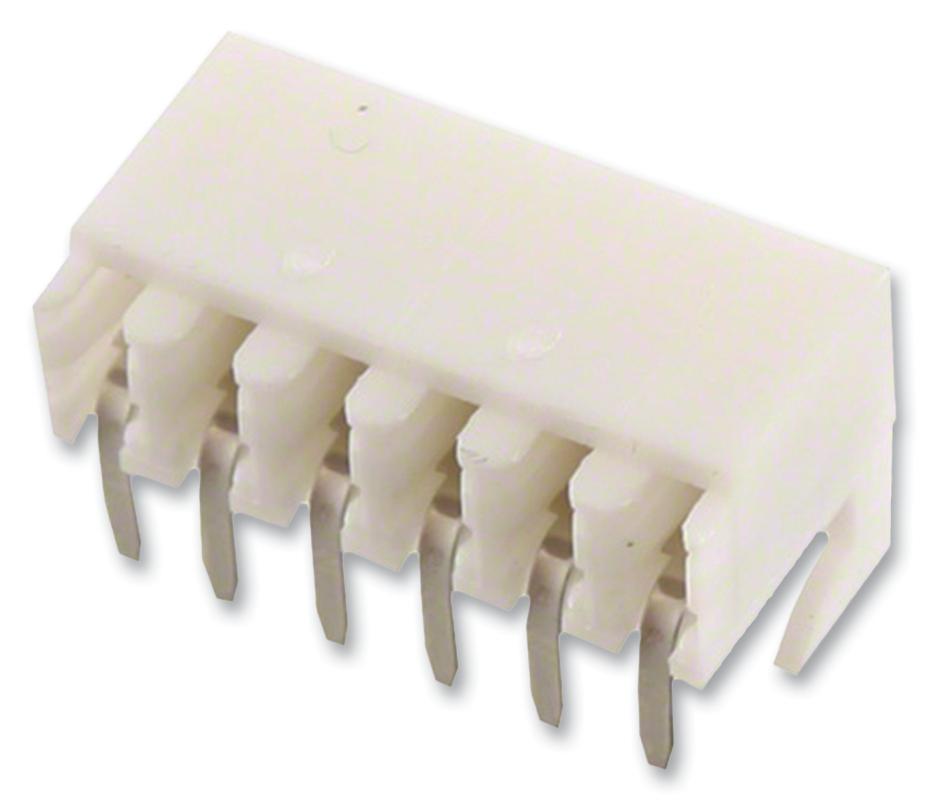

The Molex KK 254 PCB connector is a reliable right-angle, end-to-end stackable interface designed for PCB applications. Featuring 6 circuits, with gold-plated contacts for superior conductivity and corrosion resistance, it ensures secure connections in electronic assemblies. Made from durable nylon resin, it supports high-temperature operation up to 235°C and complies with RoHS standards. Suitable for board-to-board signal connections, this connector is ideal for compact, high-density electronic projects, providing robust mechanical and electrical performance for industrial, automation, and communication systems.
MOLEX 22162060 PCB Connector Specifications:
- Number of Circuits: 6
- Color - Resin: Natural (White)
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 0.635g
- Orientation: Right Angle
- PC Tail Length: 3.35mm
- PCB Receptacles: Through Hole
- Current - Maximum per Contact: 2.5A
- Voltage - Maximum: 500V
- Temperature Range - Operating: -55°C to 235°C
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 2.54um
- Plating min - Termination: 0.381um
- Packaging Type: Tray
- Guides to Mating Part: None
- Lock to Mating Part: No
- Guide to Mating Part: None
- PCB Thickness - Recommended: 1.60mm
- RoHS: Compliant, Halogen-Free, Low-Halogen
- Agency Certification: CSA, UL
Buy the Molex KK 254 U–Reliable PCB Connector for Industrial Applications
Secure your electronic assemblies with the Molex KK 254 PCB connector, featuring 6 gold-plated contacts and a right-angle design. Made from durable nylon, it withstands high temperatures up to 235°C and is RoHS compliant, making it ideal for industrial, automation, and communication systems. Its compact form and reliable electrical performance ensure seamless board-to-board connections. Purchase online today for a high-quality, cost-effective solution that guarantees robust mechanical and electrical performance in demanding environments. Elevate your project with trusted components.
Order your Molex KK 254 PCB connector today and ensure your electronic projects have dependable, high-quality interconnections for industrial and automation systems.
Frequently Asked Questions
Where can I buy MOLEX 22162060?
You can click on the BUY or RFQ button to purchase 22162060 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 22162060?
You can download the 22162060 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 22162060?
MOLEX
