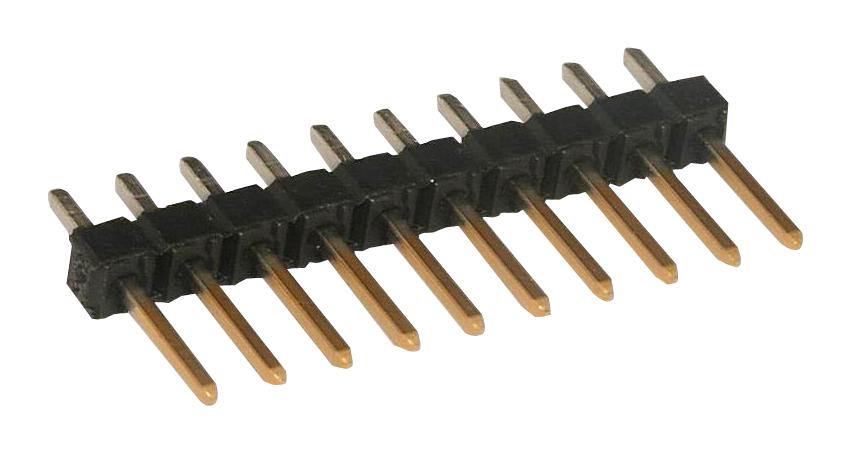

MOLEX 22284105 KK 254 Breakaway Header
The MOLEX 22-28-4105 KK 254 Breakaway Header is a versatile interconnect solution suitable for a range of applications including board-to-board and wire-to-board connections. This header offers 10 circuits in a vertical configuration, ensuring efficient space utilization. The gold plating on the mating interface provides excellent conductivity and durability, while the tin plating on the termination interface facilitates reliable solder connections. Designed with a breakaway feature, this header simplifies assembly and maintenance processes. It is ideal for applications requiring robust and reliable signal transmission in various industrial and commercial settings.
MOLEX 22284105 KK 254 Breakaway Header Specifications:
- Status: Active
- Overview: KK Interconnect System - Molex
- Description: KK 254 Breakaway Header, Vertical, 10 Circuits, 0.38µm Gold (Au) Selective Plating
- Application: Board-to-Board, Signal, Wire-to-Board
- Circuits Loaded: 10
- Circuits Maximum: 10
- Color: Black
- Durability Mating Cycles Max: 100
- Flammability: 94V-0
- Guide to Mating Part No: None
- Lock to Mating Part: None
- Material Metal: Brass
- Material Plating Mating: Gold
- Material Plating Termination: Tin
- Material Resin: High Temperature Thermoplastic
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.05mm
- PCB Locator: No
- PCB Retention: None
- PCB Thickness Recommended: 1.60mm
- Packaging Type: Bag
- Pitch Mating Interface: 2.54mm
- Plating min Mating: 0.381µm
- Plating min Termination: 2.540µm
- Polarized to Mating Part: No
- Polarized to PCB: No
- Shrouded: No
- Stackable: No
- Surface Mount Compatible: Yes
- Temperature Range Operating: See Product Specification
- Current Maximum per Contact: 4.0A
- Voltage Maximum: 500V
- Duration at Max Process Temperature: 005
- Lead-free Process Capability: WAVE
- Max Cycles at Max Process Temperature: 001
- Process Temperature max C: 260
- Engineering Number: 42375-0255
- Packaging Specification: PK-40873-0041-001
- Product Specification: PS-10-07-001
- Sales Drawing: SD-42375-001
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
