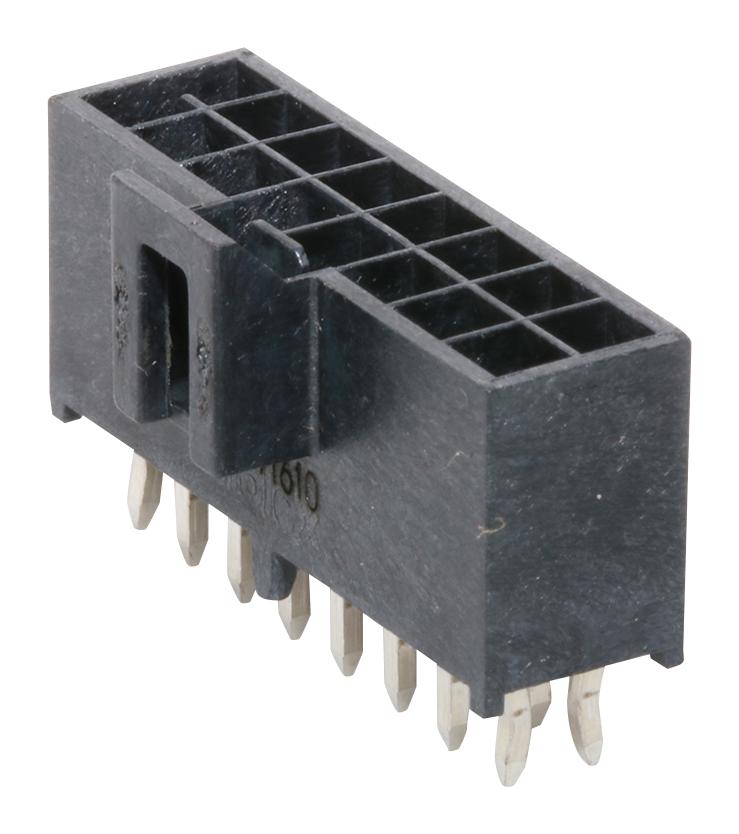

MOLEX 1053101216 Nano-Fit Power Connector
The MOLEX 105310-1216 Nano-Fit Power Connector is a robust and compact solution for wire-to-board applications. Designed with a dual-row configuration and 16 circuits, this connector provides a secure and reliable connection. Its through-hole design simplifies integration into PCB assemblies, while the kinked pins and gold-over-nickel plating ensure excellent signal transmission and durability. Suitable for a wide range of industrial and consumer electronics applications, the Nano-Fit connector offers a space-saving and high-performance interconnect solution.
MOLEX 1053101216 Nano-Fit Power Connector Specifications:
- Series: 105310
- Description: Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 16 Circuits, with Kinked Pins, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable
- Circuits_Loaded: 16
- Circuits_Maximum: 16
- Color_Resin: Black
- Durability_Mating_Cycles: 50
- Flammability: 94V-0
- Glow_Wire_Capable: Yes
- Guide_to_Mating_Part: Yes
- Lock_to_Mating_Part: Yes
- Material_Metal: Brass
- Material_Plating_Mating: Gold over Nickel
- Material_Plating_Termination: Tin over Nickel
- Material_Resin: Liquid Crystal Polymer
- Net_Weight_g: 1.390
- Number_of_Rows: 2
- Orientation: Vertical
- PC_Tail_Length_mm: 3.20
- PCB_Locator: Yes
- PCB_Retention: Yes
- PCB_Thickness_Recommended_mm: 1.60, 2.40
- Packaging_Type: Tray
- Pitch_Mating_Interface_mm: 2.50
- Pitch_Termination_Interface_mm: 2.50
- Plating_min_Mating_µm: 0.381
- Plating_min_Termination_µm: 1.524
- Polarized_to_Mating_Part: Yes
- Polarized_to_PCB: Yes
- Shrouded: Yes
- Stackable: No
- Surface_Mount_Compatible_SMC: No
- Current_Maximum_per_Contact_A: 6.5
- Voltage_Maximum_V: 300
- Temperature_Range_Operating_C: -40° to +115°
- Agency_Certification_CSA: LR19980
- Agency_Certification_UL: E29179
