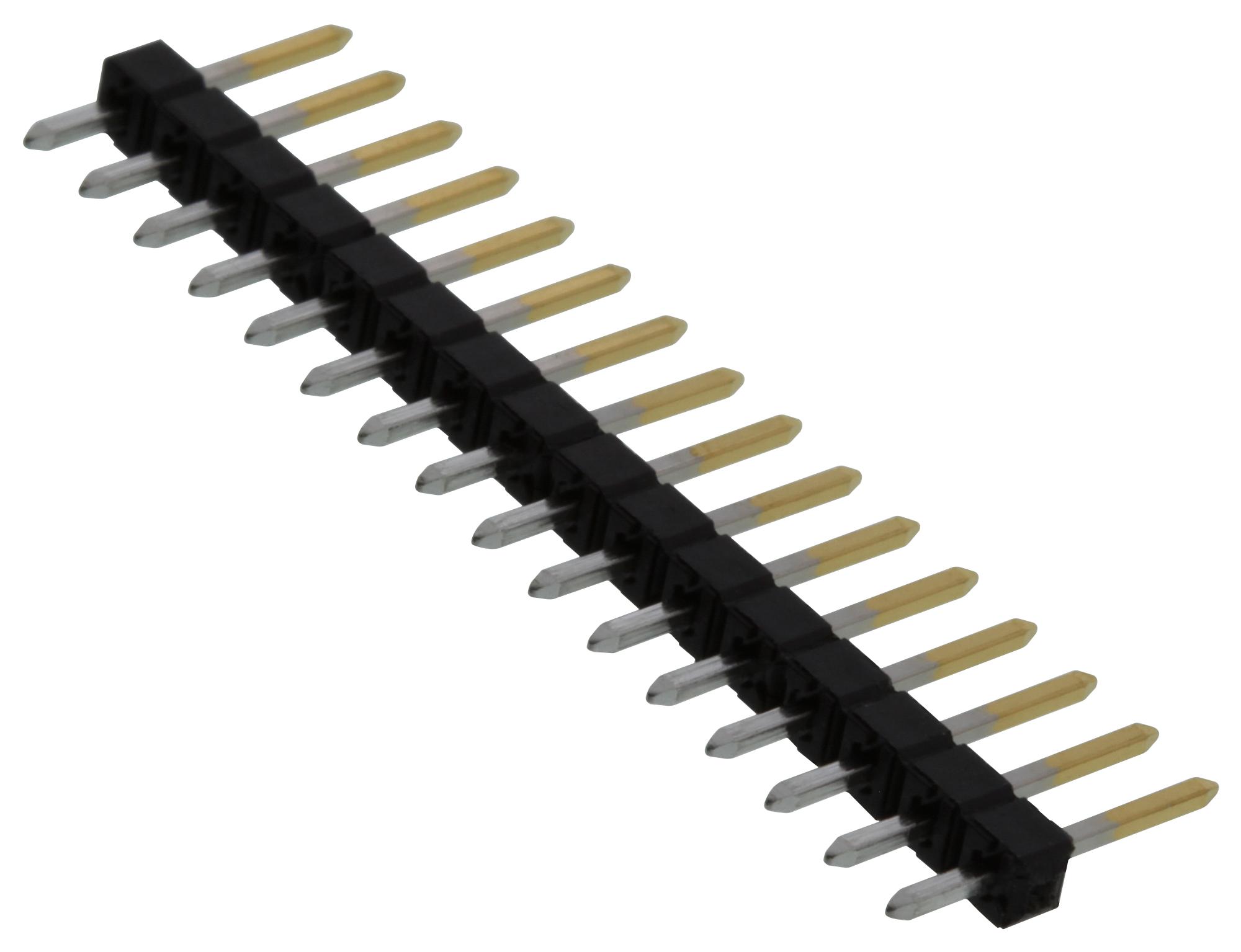

MOLEX 22284163 KK 254 Breakaway Header
The MOLEX 22-28-4163 KK 254 Breakaway Header is a versatile interconnect solution designed for a range of applications, including board-to-board and signal transmission. This header offers 16 circuits in a vertical configuration, facilitating efficient space utilization on printed circuit boards. The gold plating on the mating interface ensures low contact resistance and reliable signal integrity, while the tin plating on the termination interface simplifies soldering processes. Its robust construction and compatibility with standard PCB designs make it a dependable choice for various industrial and commercial applications. It is RoHS compliant and features a durable thermoplastic resin construction.
MOLEX 22284163 KK 254 Breakaway Header Specifications:
- Circuits (Loaded): 16
- Circuits (maximum): 16
- Color: Black
- Durability (mating cycles max): 100
- Flammability: 94V-0
- Guide to Mating Part: None
- Lock to Mating Part: None
- Material - Metal: Brass
- Material - Plating Mating: Gold (0.381µm min)
- Material - Plating Termination: Tin (2.540µm min)
- Material - Resin: High Temperature Thermoplastic
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.18mm
- PCB Locator: No
- PCB Retention: None
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 2.54mm
- Polarized to Mating Part: No
- Polarized to PCB: No
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: See Product Specification
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 250V
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 260
- Duration at Max. Process Temperature (seconds): 005
- Old Part Number: 42375-0051
- Product Specification: PS-10-07
- Sales Drawing: SD-42375-001
