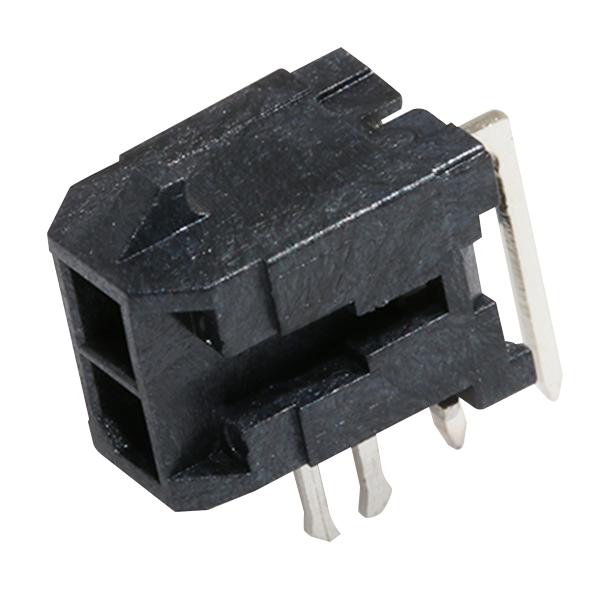

MOLEX 430450221 power connector
The Micro-Fit 3.0 right-angle header features a 3.00mm pitch, dual row, with 2 circuits, and a PCB press-fit metal retention clip. Made from high-temperature thermoplastic with a black resin, it supports up to 30 mating cycles. Certified for UL and CSA, it complies with RoHS, halogen-free, and low-halogen standards, making it suitable for power and wire-to-board applications in demanding environments. Designed for durability with tin-plated brass contacts, it withstands operating temperatures from -40°C to +105°C, ensuring reliable electrical connections in industrial and consumer appliances.
MOLEX 430450221 power connector Specifications:
- Pitch: 3.00mm
- Circuits: 2
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High-temperature thermoplastic
- Durability: 30 mating cycles
- Maximum Current: 8.5A
- Maximum Voltage: 600V
- Temperature Range: -40°C to +105°C
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 10.06mm
- Net Weight: 0.631g
- Number of Rows: 2
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.60mm
- PCB Retention: Yes
- Solder Process Data: SMC & WAVE, Max. Temp. 260°C, Duration 3 sec.
- Packaging: Tray
- Shrouded: Yes
- Stackable: No
Buy the Molex 0430450221 – Reliable Power Connector for Industrial Applications
Secure your electrical projects with the Molex power connector. Designed for durability and safety, it features a 3.00mm pitch, dual-row configuration, and a press-fit metal clip. Made from high-temperature thermoplastic with tin-plated brass contacts, it withstands harsh environments and up to 30 mating cycles. Certified for UL and CSA standards, RoHS compliant, and halogen-free, it ensures optimal performance in industrial, household, and electronic applications. Order online today for fast delivery and reliable connections.
Buy Molex 0430450221 now and experience unmatched reliability and performance in power and wire-to-board connections.
