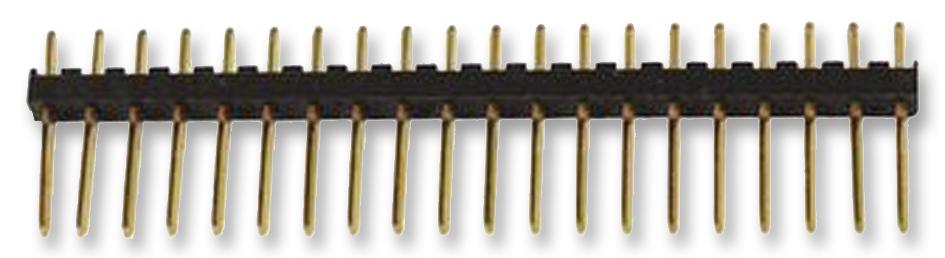

MOLEX 22284205 KK Interconnect System Header
The MOLEX 22-28-4205 KK® 254 Breakaway Header is a versatile interconnect solution suitable for a range of applications including board-to-board and wire-to-board connections. It offers 20 circuits in a vertical configuration, ensuring efficient space utilization. The gold selective plating on the mating interface provides excellent signal integrity and durability. This header is designed for through-hole termination and is compatible with a variety of PCB thicknesses, making it a flexible choice for diverse electronic designs. Its robust construction and reliable performance make it ideal for industrial and commercial applications.
MOLEX 22284205 KK Interconnect System Header Specifications:
- Product Family Series: 42375
- Application Overview: Board-to-Board, Signal, Wire-to-Board
- Circuits (Loaded): 20
- Circuits (maximum): 20
- Color - Resin: Black
- Durability (mating cycles max): 100
- First Mate / Last Break: No
- Flammability: 94V-0
- Glow-Wire Compliant: No
- Guide to Mating Part: None
- Lock to Mating Part: None
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 1.624/g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.05mm
- PCB Locator: No
- PCB Retention: None
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to Mating Part: No
- Polarized to PCB: No
- Shrouded: No
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: See Product Specification
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 500V
- Duration at Max. Process Temperature (seconds): 005
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 260
- Engineering Number: 42375-0265
- Product Specification: PS-10-07-001
- Sales Drawing: SD-42375-001
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Green Image
- REACH SVHC: Not Contained Per -ED/01/2017 (12 January 2017)
- Halogen-Free Status: Low-Halogen
