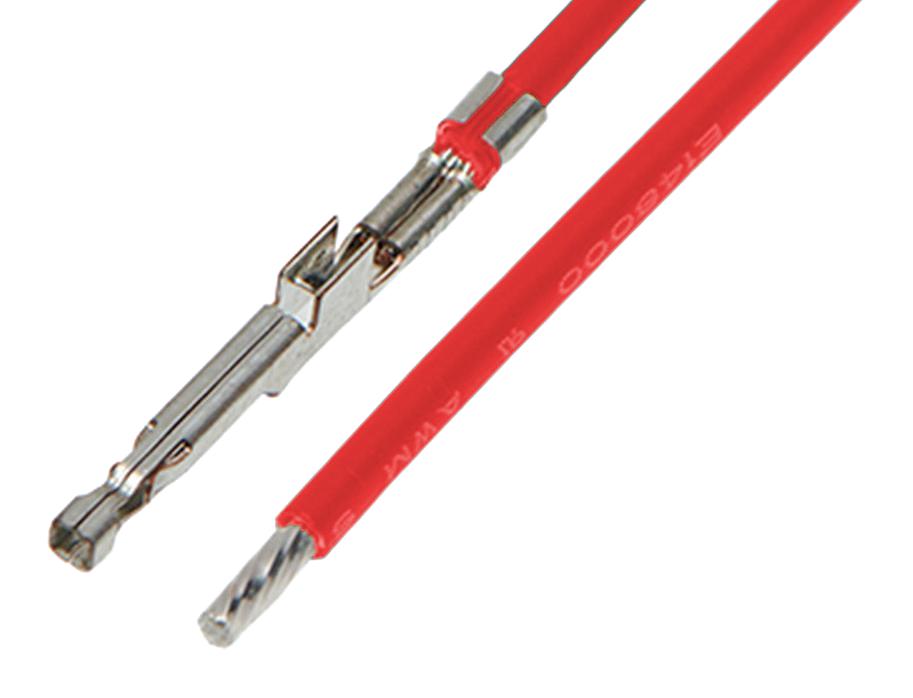

MOLEX 2174712112 Power Cable Assembly
Molex's pre-crimped leads offer a reliable and cost-effective solution for prototyping, pre-production, and mass manufacturing projects. This series features ultra-fit female-to-pigtail cable assemblies with a red resin housing, made from high-conductivity copper with tin plating for enhanced durability and corrosion resistance. Capable of withstanding up to 600V AC (RMS) and DC, each cable uses 18 AWG wire compliant with UL 1061 standards. Fully tested for reliability, these pre-crimped cables simplify assembly, reduce time-to-market, and are ideal for various prototype and pre-production applications involving connector testing and validation.
MOLEX 2174712112 Power Cable Assembly Specifications:
- Wire Size: 18 AWG
- Wire Length: 150.00 mm
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Tin
- Color - Resin: Red
- Termination Interface: Crimp
- Insulation Diameter: 2.03-2.39 mm
- Voltage - Maximum: 600V AC (RMS) / DC
- Current - Maximum per Contact: 12.0A
- Gender: Female-Pigtail
- Application: Power, Wire-to-Board, Pre-crimped Lead
- Packaging: Bag
- Standards: UL 1061
- RoHS Compliance: EU RoHS, China RoHS
- Conformity: REACH SVHC Not Contained, Halogen-Free: No
- Status: Active
Buy the Molex Series Ultra-Fit Female-to-Pigtail 2174712112
Purchase the Molex Series Ultra-Fit Female-to-Pigtail power cable assembly online today. Designed for reliable prototyping and pre-production use, this 18 AWG, 150mm long cable features a red housing, high-conductivity copper with tin plating, rated for up to 600V and 12A. Fully tested for safety and quality, it simplifies assembly processes, reduces time-to-market, and suits various industrial, power, and electronic applications. Buy now to ensure your projects benefit from durable, high-performance connections with quick online access and fast shipping.
Order your Molex Series Ultra-Fit Female-to-Pigtail 2174712112 today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MOLEX 2174712112?
You can click on the BUY or RFQ button to purchase 2174712112 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2174712112?
You can download the 2174712112 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2174712112?
MOLEX
