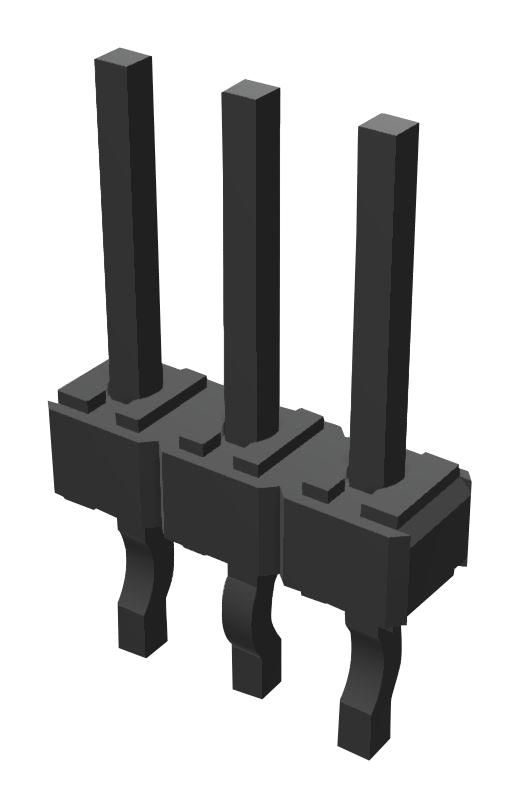

MOLEX 22285033 KK 254 Breakaway Header
The MOLEX 22-28-5033 KK 254 Breakaway Header is a versatile interconnect solution designed for a range of applications including board-to-board and wire-to-board connections. This header features 3 circuits and a vertical orientation, making it suitable for compact designs. The gold plating on the mating interface ensures reliable signal transmission, while the tin plating on the termination interface facilitates easy soldering. Its breakaway design allows for easy separation of connected boards, simplifying assembly and maintenance. The header is compatible with KK Crimp Housings and offers a robust and dependable connection for various electronic devices.
MOLEX 22285033 KK 254 Breakaway Header Specifications:
- Product Family: PCB Headers
- Series: 42375
- Application: Board-to-Board, Signal, Wire-to-Board
- Overview: KK® Interconnect System - Molex
- UPC: 800753626003
- Circuits (Loaded): 3
- Circuits (maximum): 3
- Color - Resin: Black
- Durability (mating cycles max): 100
- First Mate / Last Break: No
- Flammability: 94V-0
- Glow-Wire Capable: No
- Guide to Mating Part: None
- Lock to Mating Part: None
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.186/g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.43mm
- PCB Locator: No
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to Mating Part: No
- Polarized to PCB: No
- Shrouded: No
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: See Product Specification
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 500V
- Duration at Max. Process Temperature (seconds): 005
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 260
- Engineering Number: 42375-0353
- Packaging Specification: PK-40873-0041-001
- Product Specification: PS-10-07-001
- Sales Drawing: SD-42375-001
- Mates With: KK Crimp Housing, 6471, 7880, KK PC Board Connector
