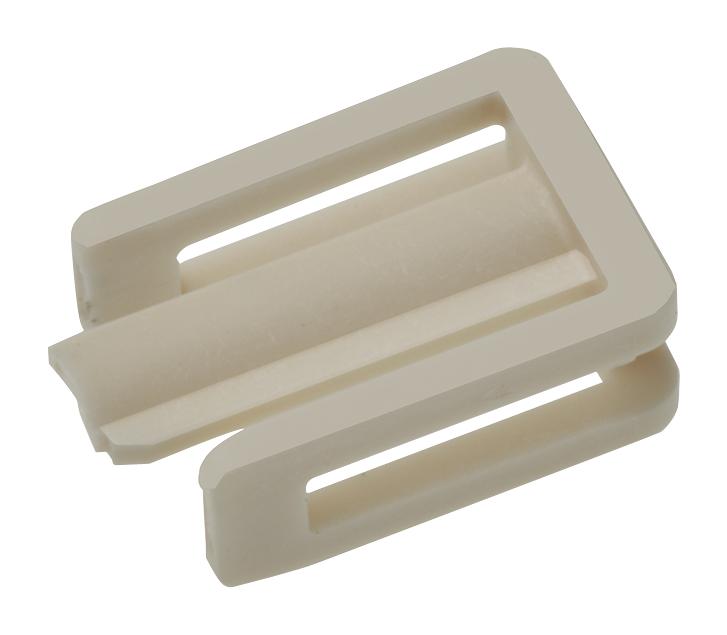

MOLEX 2064620100 Micro-Fit+ TPA Retainer
The MOLEX 2064620100 is a Micro-Fit+ Terminal Position Assurance (TPA) retainer, a crucial component in the Micro-Fit Connector System. This retainer provides a secure locking mechanism for terminals, preventing them from migrating or becoming dislodged during assembly or operation. It is designed for 1 circuit applications with a 3.00mm pitch and is manufactured from Nylon, offering good insulation and durability. The retainer is UL 94V-0 rated and glow-wire capable, ensuring compliance with industry safety standards. It is commonly used in automotive, industrial, and consumer electronics applications where reliable electrical connections are essential.
MOLEX 2064620100 Micro-Fit+ TPA Retainer Specifications:
- overview: Micro-Fit Connector System
- description: Micro-Fit+ Terminal Position Assurance (TPA) Retainer, 1 Circuit, 3.00mm Pitch, UL 94V-0, Glow-Wire Capable, Natural
- product_family: Accessories
- series: 206462
- datasheet_order_no: 987651-9552
- circuits_loaded: 1
- circuits_maximum: 1
- color_resin: Natural
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 0.055
- number_of_rows: 1
- packaging_type: Bag
- temperature_range_operating_c: -40° to +105°C
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained Per -ED/88/2018 (15 January 2019)
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
- upc: 191130004805
- use_with: Micro-Fit+ Receptacle Housing 206461
