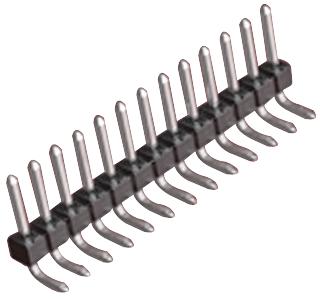

MOLEX 22286360 KK Interconnect System
The MOLEX 22-28-6360 KK 254 Breakaway Header is a versatile connector solution for board-to-board applications. Designed with 36 circuits and a right-angle orientation, it provides a secure and reliable connection. The tin plating ensures excellent solderability and corrosion resistance, while the high-temperature thermoplastic resin material offers durability and stability. This connector is commonly used in signal transmission applications within electronic devices and equipment, offering a robust and efficient interconnect solution.
MOLEX 22286360 KK Interconnect System Specifications:
- Circuits: 36
- Material - Resin: High Temperature Thermoplastic
- Plating min - Mating: 2.540µm
- PCB Tail Length: 3.05mm
- Pitch - Mating Interface: 2.54mm
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 500V
- Material - Metal: Brass
- Material - Plating: Tin
- Durability (mating cycles max): 25
- Flammability: 94V-0
- Net Weight: 2.664/g
- Number of Rows: 1
- PCB Retention: None
- Polarized to PCB: No
- Stackable: No
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: See Product Specification
- Termination Interface: Style: Through Hole
- Mating Material - Plating: Tin
- Termination Material - Resin: High Temperature Thermoplastic
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Bag
