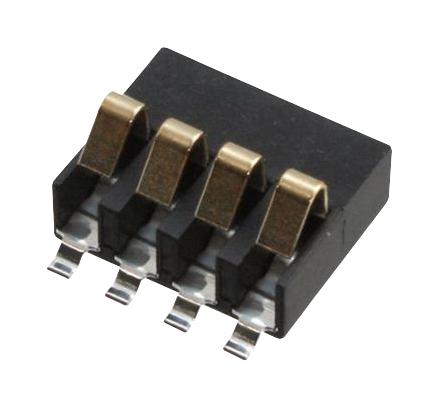

MOLEX 474100001 Battery Connector
The 2.00mm pitch battery connector with 4 circuits is a surface-mount, high-reliability PCB header designed for board-to-board signal applications. Constructed with phosphor bronze and high-performance thermoplastic resin, it features gold-plated contacts for excellent conductivity and corrosion resistance. With a mating height of 3.80mm, current rating of 1.0A per contact, and maximum voltage of 200V, this connector supports up to 10,000 mating cycles. It is RoHS compliant, low-halogen, and suitable for operational temperatures from -40°C to +85°C, ensuring robust electronic connections in various environments.
MOLEX 474100001 Battery Connector Specifications:
- Pitch - Mating Interface: 2.00mm
- Number of Circuits: 4
- Color: Black
- Material - Metal: Phosphor Bronze
- Material - Plating: Gold (mating), Nickel (termination)
- Material - Resin: High Performance Thermoplastic
- Width: 7.00mm
- Height: 3.80mm
- Operating Temperature Range: -40°C to +85°C
- Current per Contact: 1.0A
- Maximum Voltage: 200V (RMS)
- Mating Cycles: Up to 10,000
- Orientation: Vertical
- Packaging: Embossed Tape on Reel
- RoHS and Reach Compliant: Yes
- Halogen-Free: Yes
- Status: Active
Buy the Molex Series 47410 Battery Connector: 0474100001
Order the Molex 0474100001 battery connector online today and ensure your electronic devices benefit from its durable, high-performance design. Features include a 2.00mm pitch, 4 circuits, surface-mount configuration, gold-plated contacts for optimal conductivity, and a working height of 3.80mm. This RoHS-compliant connector supports up to 10,000 mating cycles, operates within -40°C to +85°C, and is ideal for board-to-board signal applications in various electronic assemblies. Purchase now for reliable, long-lasting connections in your projects.
Buy Molex 0474100001 now and experience unmatched reliability and performance in high-quality PCB connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 474100001?
You can click on the BUY or RFQ button to purchase 474100001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 474100001?
You can download the 474100001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 474100001?
MOLEX
