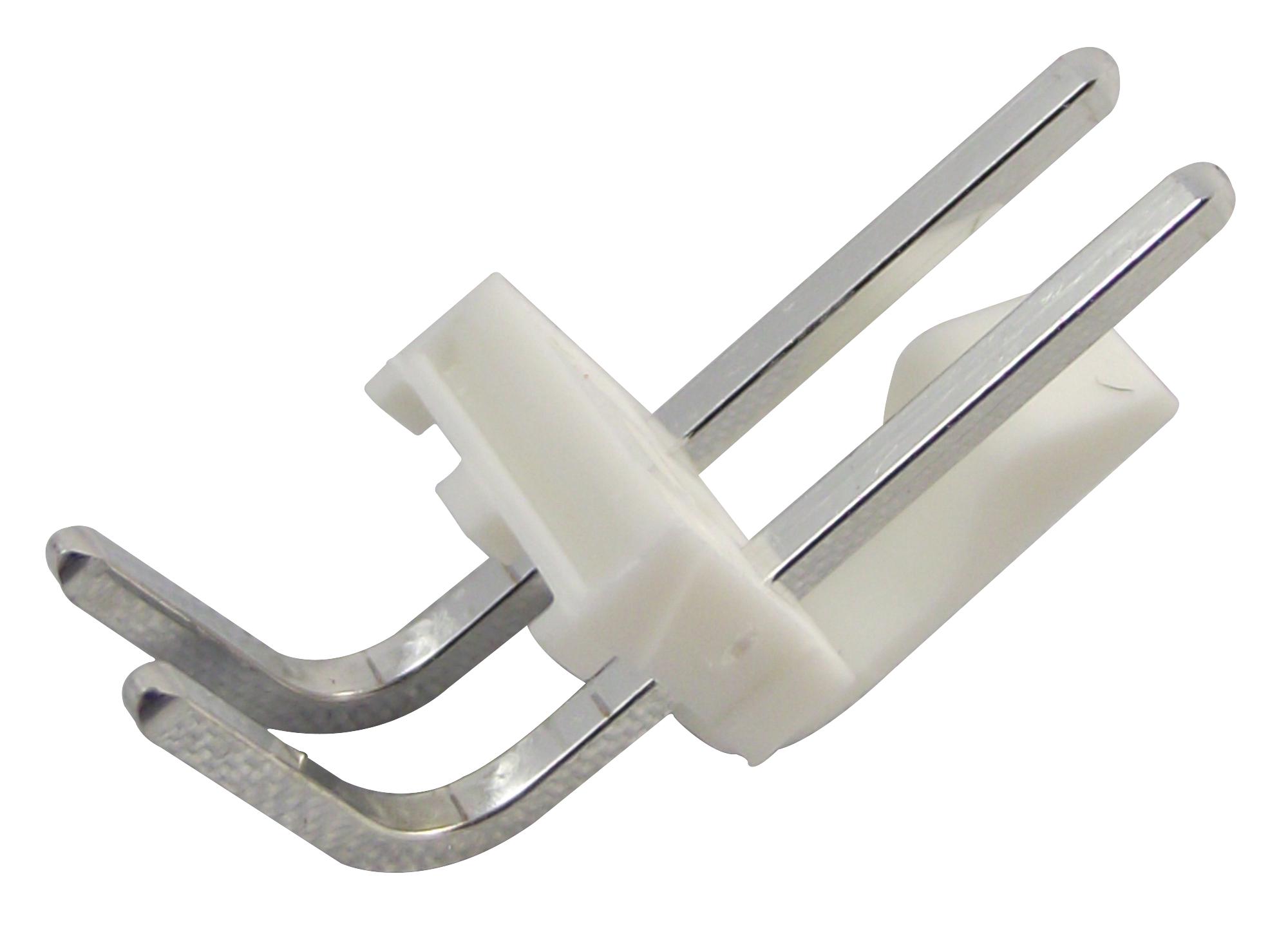

MOLEX 26605020 power PCB connector
The Molex KK 396 Header is a right-angle Interconnect System component with friction lock, designed for wire-to-board applications. Featuring tin plating on brass contacts, it supports up to 7.0A and 250V, with a pitch of 3.96mm. Its durable design offers up to 25 mating cycles, and it complies with RoHS and UL standards. Ideal for power and signal connections in various electronic assemblies, this PCB header ensures reliable performance, easy installation, and high compatibility with Molex mating components such as KK crimp housings and PCB connectors.
MOLEX 26605020 power PCB connector Specifications:
- Number of Circuits: 2
- Color - Resin: Natural
- Flammability: 94V-0
- Durability (mating cycles max): 25
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 0.946 grams
- Orientation: Right Angle
- PCB Tail Length: 1.60mm
- Pitch - Mating Interface: 3.96mm
- Plating min - Mating: 5.080um
- Plating min - Termination: 5.080um
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 7.0A
- Voltage - Maximum: 250V
- Process Temperature max: 235°C
- UL Certification: Yes
- RoHS Compliant: Yes
- UL Recognized: Yes
- CSA Certified: Yes
Buy the Molex KK396 U–2013 Reliable Power Connector for Industrial Applications
Enhance your electronic assemblies with the Molex KK 396 Header, a robust and reliable right-angle connector with tin plating suitable for power and signal tasks. Offering a 3.96mm pitch, it supports up to 7.0A and 250V, ensuring efficient power transfer. Its durable design with a maximum of 25 mating cycles, UL and RoHS compliance, and easy installation makes it ideal for industrial and electronic applications. Invest in high-quality connectors to improve performance and longevity of your devices.
Buy Molex KK396 now and experience unmatched reliability and performance in your power and signal connections.
Frequently Asked Questions
Where can I buy MOLEX 26605020?
You can click on the BUY or RFQ button to purchase 26605020 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 26605020?
You can download the 26605020 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 26605020?
MOLEX
