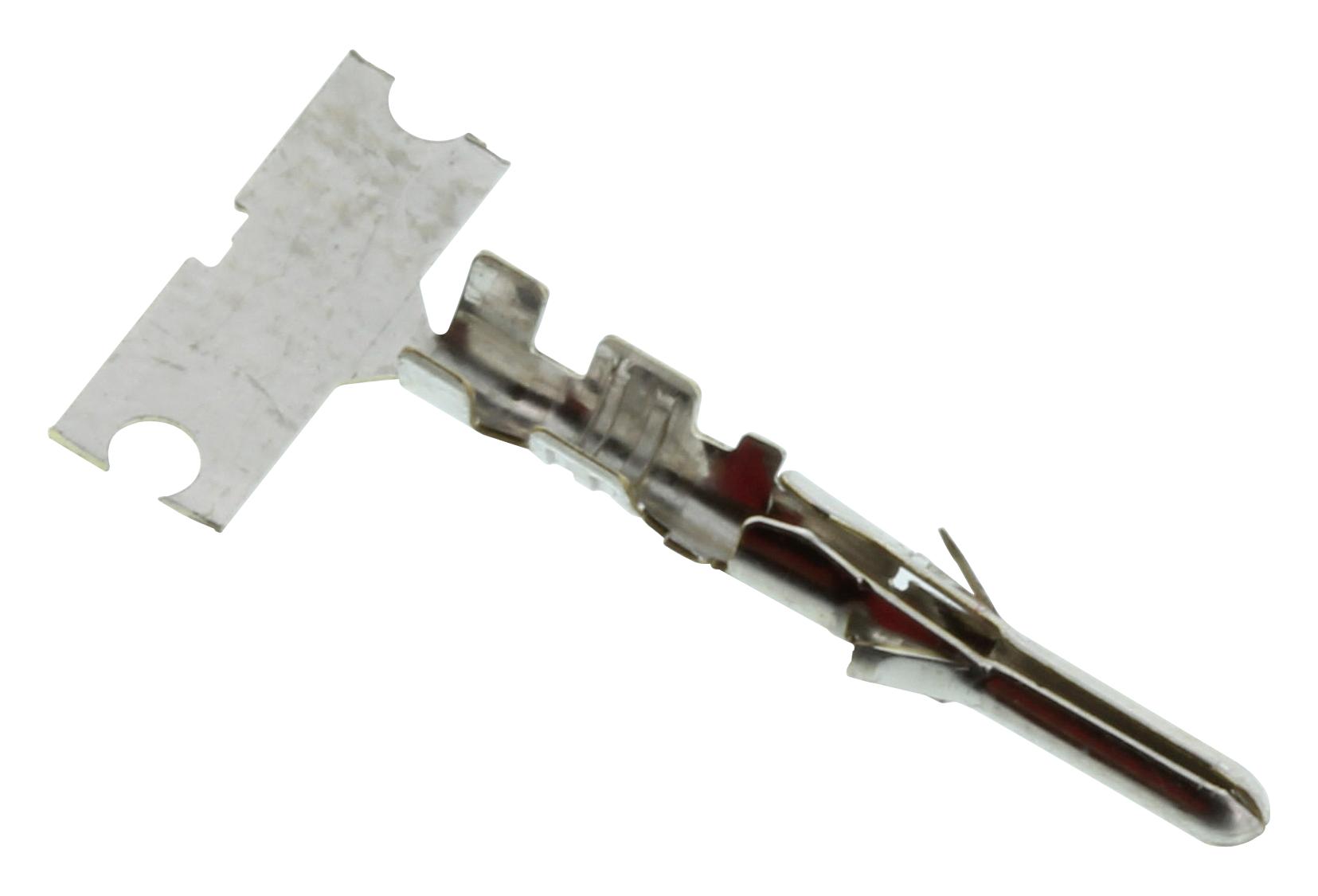

MOLEX 1501801020 Electronics Terminal
The EconoLatch Male Terminal is designed for wire-to-wire connections with 20-22 AWG conductors, featuring tin plating for corrosion resistance. Made from durable brass, this terminal supports up to 7.5A current and maximum voltage of 400V, ensuring reliable electrical connections. Packaged on reels, it conforms to RoHS and ELV standards for environmentally friendly applications. Compatible with EconoLatch plug housing, it offers easy crimping with specialized tooling for secure and consistent terminations. Its compact design optimizes space in industrial wiring and assembly processes, making it ideal for automation and electronic device manufacturing.
MOLEX 1501801020 Electronics Terminal Specifications:
- Wire Size: 20-22 AWG (0.32-0.51mm²)
- Material: Brass
- Plating: Tin
- Net Weight: 0.124g
- Durability: Up to 25 mating cycles
- Current Capacity: 7.5A
- Voltage Rating: 400V
- Packaging: Reel
- Termination Interface: Crimp
- Wire Insulation Diameter: 1.20-1.80mm
- Product Family: EconoLatch
- RoHS and ELV Compliant
- Applicable standards: UL1007, UL1061
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Reference Drawing Number: 1501760001 -AS-000
Buy the Molex Series EconoLatch Male Terminal: 1501801020
Purchase the Molex EconoLatch Male Terminal online and secure a reliable, high-quality component for your wiring needs. Designed for 20-22 AWG conductors, this tin-plated brass terminal offers excellent corrosion resistance, supporting up to 7.5A and 400V. Perfect for industrial automation, electronic devices, and wiring assemblies, it ensures quick, secure crimp connections with specialized tooling. Packaged in reels for efficient installation and compliance with RoHS standards, this terminal provides durability and performance for professional electrical applications.
Get Molex 1501801020 today—built for reliable wire-to-wire connections with easy crimping and long-lasting durability.
