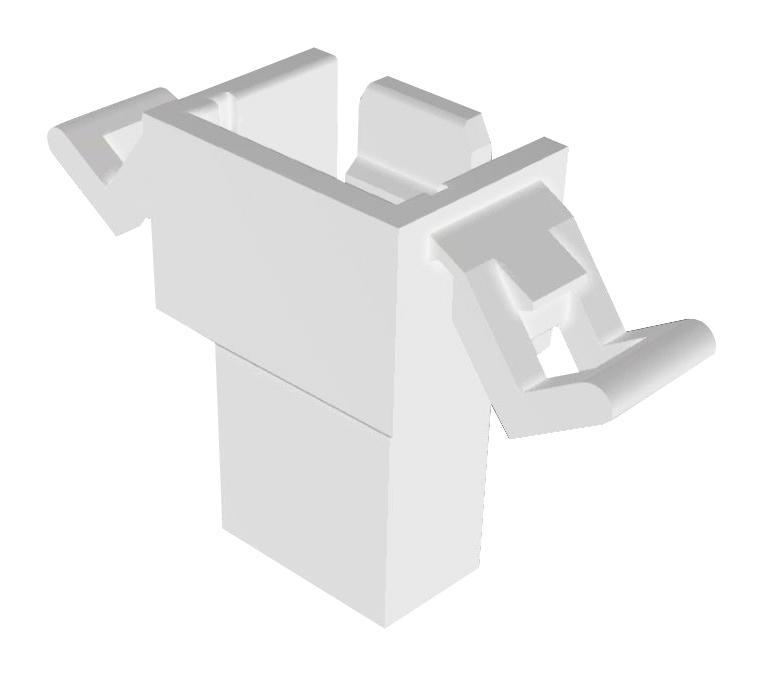

MOLEX 29110032 Wire-to-Wire Connector
The Mini-Latch Wire-to-Wire Plug Housing is a 2.50mm pitch connector designed for signal wiring applications. It features a friction lock with mounting ears, three circuits, and a natural (white) resin color. Suitable for various industries, this connector ensures secure mating with lock-to-mating parts, operates reliably within a temperature range of -40°C to +105°C, and complies with RoHS standards, including low-halogen flammability rated at UL 94V-0. Its compact design makes it ideal for applications requiring reliable wire-to-wire connections in space-constrained environments.
MOLEX 29110032 Wire-to-Wire Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 3
- Material: Halogen-Free, Natural (White) resin
- Flammability: UL 94V-0
- Temperature Range: -40°C to +105°C
- Locking Mechanism: Friction lock with lock-to-mating feature
- Panel Mount: Yes
- Color: Natural (White)
- Weight: 843.3 mg per unit
- RoHS Compliance: Yes, China RoHS and EU RoHS
- Certification: CSA LR19980, UL E29179, EU ELV
- Application: Signal, Wire-to-Wire connections
- Packaging: Bag A
- Soldering/Installation: Suitable for crimping and panel mounting
Buy the Molex Series 5240 Mini-Latch Wire-to-Wire Connector 0029110032
Discover the Molex Mini-Latch Wire-to-Wire Connector, featuring a 2.50mm pitch, three circuits, and a friction lock mechanism for secure mating. Crafted with halogen-free, UL 94V-0 rated resin, it is ideal for signal wiring in compact electronic devices. Its operating temperature spans -40°C to +105°C, ensuring dependable performance in demanding environments. The connector is RoHS compliant, includes panel mounting ears, and offers easy installation with crimping options. Trust Molex for reliable, high-quality connections that meet industry standards.
Buy Molex 0029110032 now and experience unmatched reliability and performance in secure wire-to-wire connections suitable for space-constrained electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 29110032?
You can click on the BUY or RFQ button to purchase 29110032 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 29110032?
You can download the 29110032 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 29110032?
MOLEX
