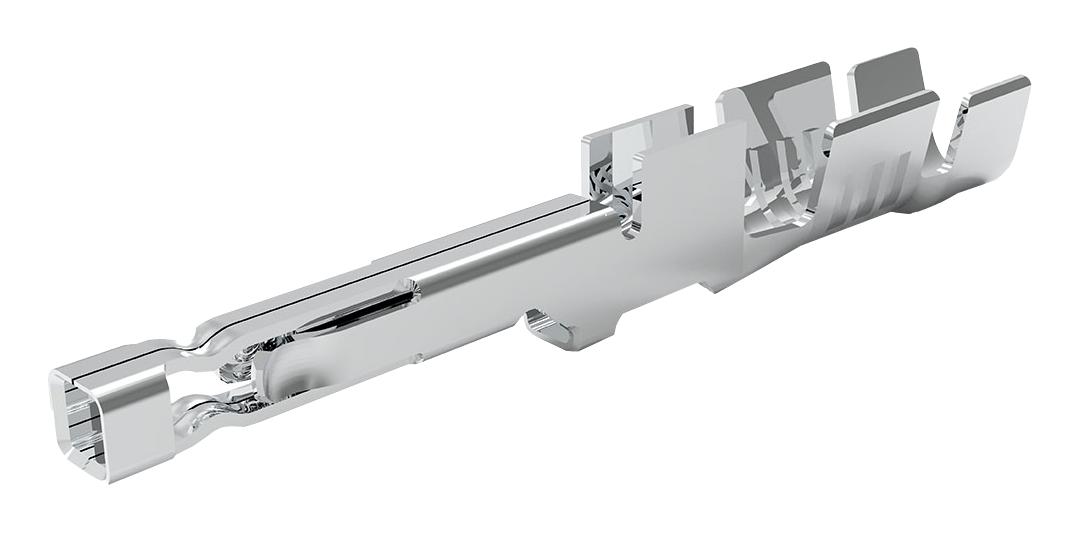

MOLEX 1722537023 Power Crimp Terminal
The Ultra-Fit Tangless Crimp Terminal is designed for optimal performance with 16-18 AWG wires, featuring tin (Sn) plating for corrosion resistance. Made from high-conductivity copper, it ensures reliable electrical connections and withstands up to 14.0A current at 600V AC/DC. The terminal's compact design facilitates quick assembly and secure crimping, suitable for power and wire-to-board applications. Compatible with Ultra-Fit Tangless Receptacle Housings, it offers durability through multiple mating cycles and compliance with RoHS standards, making it ideal for industrial and electronic manufacturing use.
MOLEX 1722537023 Power Crimp Terminal Specifications:
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 16, 18
- Wire Insulation Diameter: 2.03-2.39mm
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 600V AC/DC
- Durability: Up to 25 mating cycles
- Net Weight: 0.144 g
- Packaging Type: Reel
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Application: Power, Wire-to-Board
- Dimensions and Physical Data: Reel packaging with wire insulation diameter of 2.03-2.39mm
- Compatibility: Ultra-Fit Tangless Receptacle Housing, series 172258, 172256
Buy the Molex 1722537023 – Reliable Crimp Terminal for Industrial Applications
Purchase the Molex 1722537023 Ultra-Fit Power Crimp Terminal online now to ensure secure, reliable electrical connections for your power and wire-to-board applications. Crafted from high-conductivity copper with tin plating, it supports 14A current at 600V. Its compact design with a wire insulation diameter of 2.03-2.39mm offers quick installation and durability through multiple mating cycles. Fully RoHS compliant, this terminal fits Ultra-Fit Tangless Receptacle Housings series 172258 and 172256, making it an ideal choice for industrial equipment, electronics, and manufacturing sectors seeking quality and reliability.
Order your Molex 1722537023 Series Ultra-Fit Power Crimp Terminal today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MOLEX 1722537023?
You can click on the BUY or RFQ button to purchase 1722537023 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1722537023?
You can download the 1722537023 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1722537023?
MOLEX
