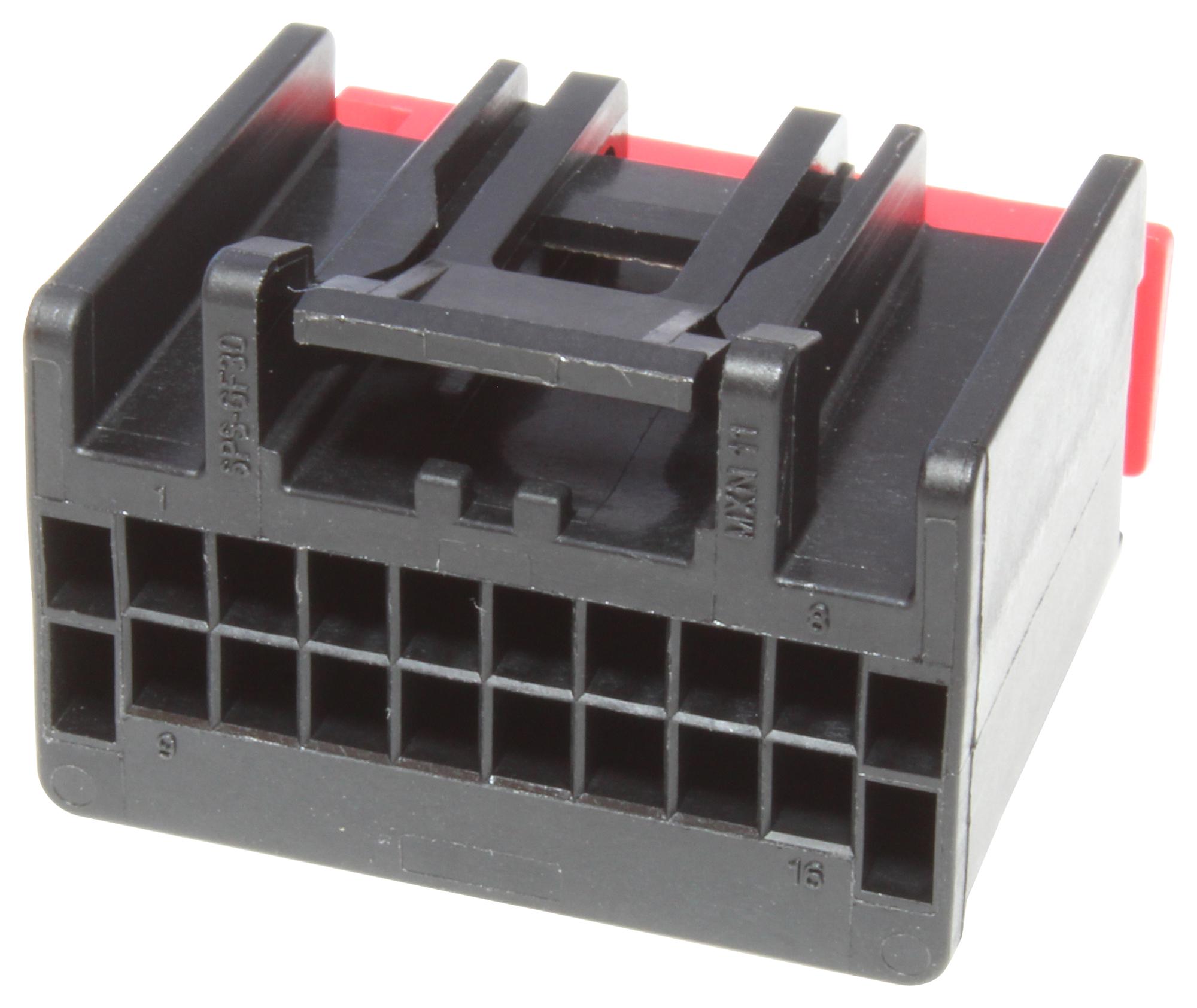

MOLEX 307001168 Automotive Connector
The H-DAC 64 high-density automotive connectors feature a 2.54mm pitch and 0.64mm width, designed for reliable power and signal connections in automotive applications. This dual-row female harness assembly includes 16 circuits with polarization option 2, available in black. Made from modified polystyrene alloy and polyester, these connectors are RoHS, REACH SVHC, and halogen-free compliant, suitable for operating temperatures from -40°C to +100°C. They support a maximum current of 7.0A per contact and are compatible with various headers and crimp housings for secure, durable connections.
MOLEX 307001168 Automotive Connector Specifications:
- Pitch: 2.54mm
- Number of Circuits: 16
- Color - Resin: Black
- Gender: Female
- Material - Resin: Modified Polystyrene Alloy, Polyester
- Operating Temperature Range: -40°C to +100°C
- Current - Maximum per Contact: 7.0A
- Packaging Type: Bag
- RoHS, REACH SVHC, Halogen-Free Compliant
- Lock to Mating Part: Yes
- Stackable: No
Buy the Molex Series H-DAC 64 Automotive Connectors: 0307001168
Order the Molex 0307001168 automotive connector online today to ensure reliable power and signal transfer in your vehicle. Designed with a 2.54mm pitch and 16 circuits, this dual-row female harness assembly offers excellent durability and secure polarization for vehicle wiring. Made from halogen-free, RoHS compliant materials, it operates efficiently within a temperature range of -40°C to +100°C. The connector supports up to 7.0A per contact and is compatible with various headers and crimp housings, providing a dependable, corrosion-resistant solution for automotive wiring needs.
Get Molex 0307001168 today—built for precision and long-lasting durability in automotive electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 307001168?
You can click on the BUY or RFQ button to purchase 307001168 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 307001168?
You can download the 307001168 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 307001168?
MOLEX
