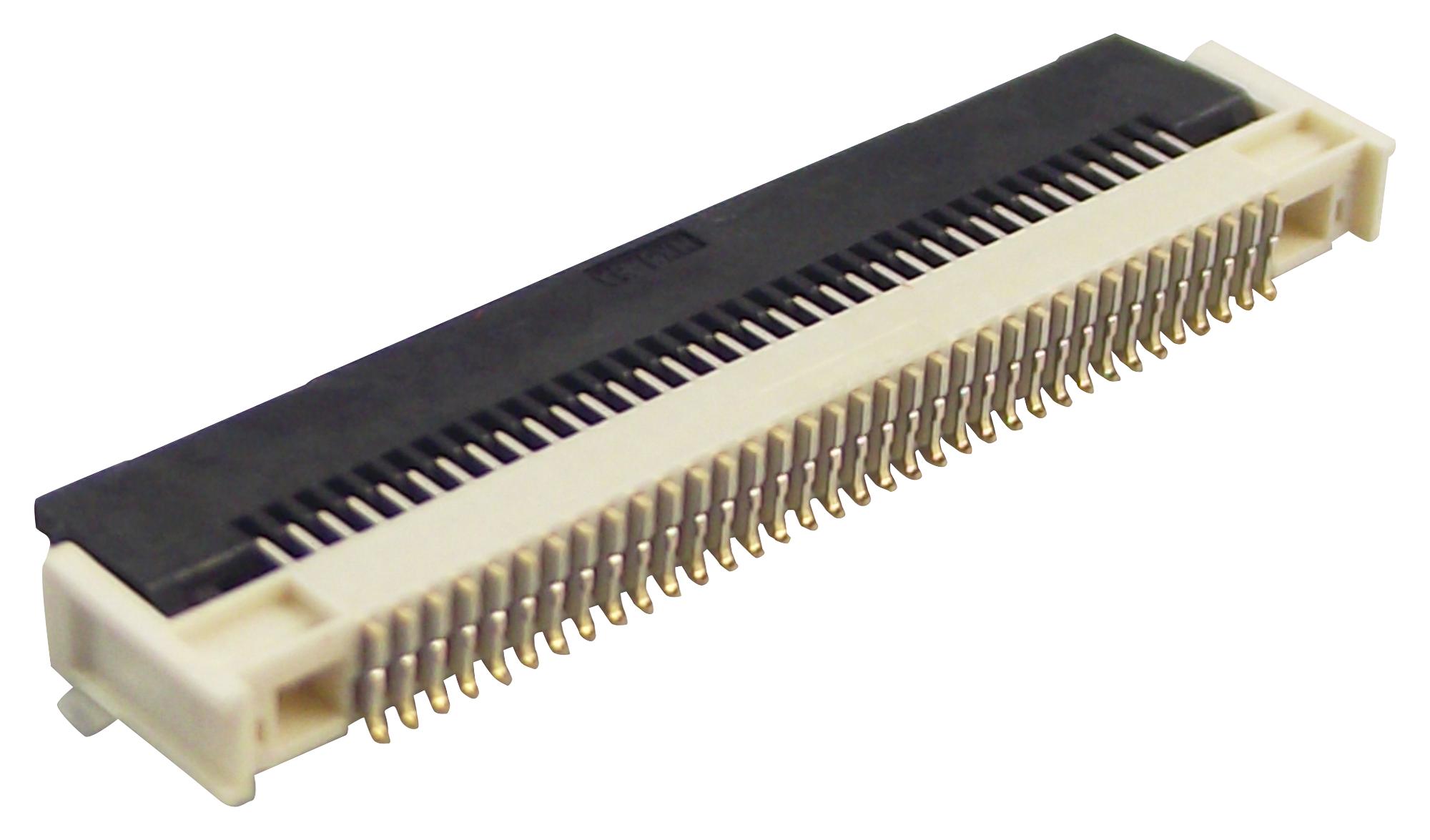

MOLEX 5051103091 FFC-FPC Connector
The Easy-On FFC/FPC Connector with a 0.50mm pitch is designed for flexible flat cable and flexible printed circuit applications. It features a right-angle, bottom contact design, and is part of the FD19 series. The connector has a height of 1.90mm, supports 30 circuits, and is plated with gold over nickel for enhanced conductivity and corrosion resistance. Ideal for compact electronic devices, this SMT surface mount connector ensures reliable mating with high durability, supporting up to 1,000 mating cycles. Its robust construction accommodates operating temperatures from -40°C to +105°C, making it suitable for diverse industrial and consumer electronics.
MOLEX 5051103091 FFC-FPC Connector Specifications:
- Pitch: 0.50mm
- Circuits: 30
- Height: 1.90mm
- Material - Metal: Phosphor Bronze
- Plating - Contact: Gold over Nickel, 0.051um minimum
- Plating - Termination: Gold over Nickel, 0.051um minimum
- Resin: Liquid Crystal Polymer
- Operating Temperature Range: -40°C to +105°C
- Electrical Current per Contact: 1.5A
- Maximum Voltage: 50V AC/DC
- Actuator Type: No actuator, right-angle
- Mounting Type: Surface Mount
- Packaging: Embossed tape on reel
- Color - Resin: Black
- Durability (mating cycles): 1000
- Net Weight: Approximate 254.1 mg per connector
Buy the Buy Molex FFC-FPC Connector Part Number 5051103091 Online
Secure your electronic projects with the Molex FFC-FPC Connector featuring a 0.50mm pitch, gold over nickel plating, and a right-angle SMT design. Designed for 30 circuit applications, it offers high durability with up to 1,000 mating cycles, operating reliably from -40°C to +105°C. Ideal for consumer electronics, industrial equipment, and flexible circuit connections, this connector ensures robust electrical contact and simple assembly. Purchase online today to ensure quick delivery and dependable connectivity for your electronic assemblies.
Buy Molex 5051103091 now and experience unmatched reliability and performance in compact electronic connector solutions.
Frequently Asked Questions
Where can I buy MOLEX 5051103091?
You can click on the BUY or RFQ button to purchase 5051103091 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5051103091?
You can download the 5051103091 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5051103091?
MOLEX
