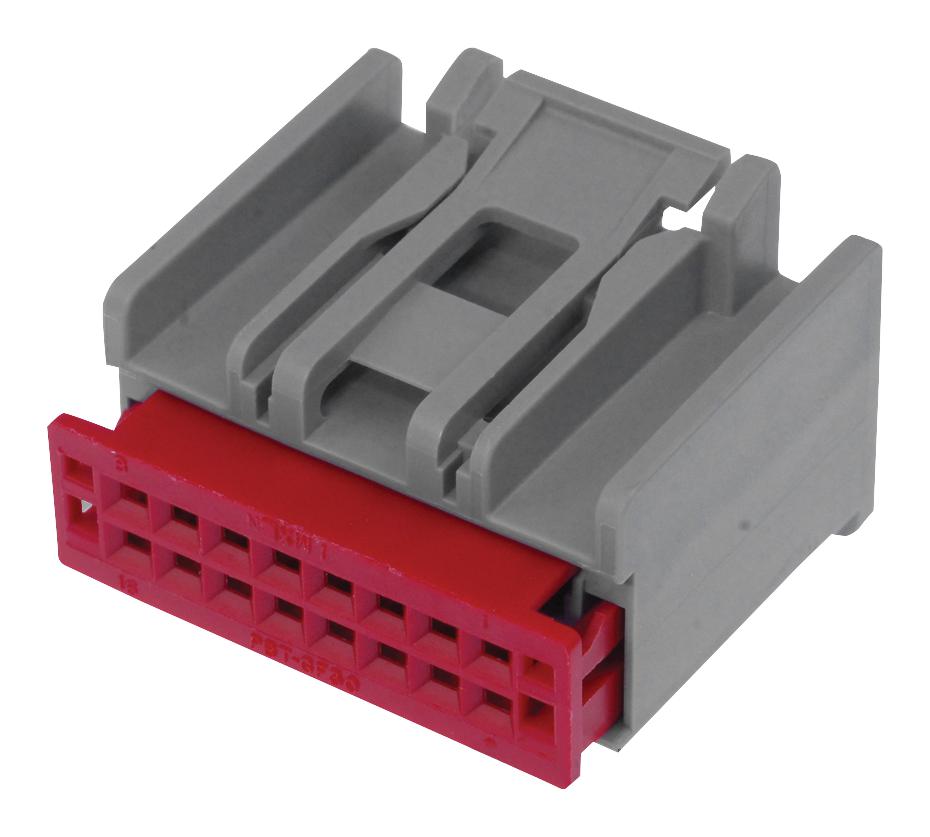

MOLEX 307001207 Automotive Connector
The H-DAC 64 high-density automotive connector features a 2.54mm pitch and 0.64mm width, designed for secure, reliable electrical connections in automotive applications. It is a dual-row female harness assembly with 20 circuits, polarized for proper mating, and constructed from durable polyester resin. This connector operates within a temperature range of -40°C to +100°C and supports a maximum current of 7.0A per contact. Suitable for wire-to-wire and wire-to-board connections, it is RoHS and ELV compliant, halogen-free, and ideal for high-density automotive wiring harnesses, ensuring long-lasting performance and safety.
MOLEX 307001207 Automotive Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Number of Circuits: 20
- Color - Resin: Gray
- Gender: Female Receptacle
- Lock to Mating Part: Yes
- Material - Resin: Polyester
- Operating Temperature Range: -40°C to +100°C
- Current - Maximum per Contact: 7.0A
- RoHS Compliance: Yes
- Elv Compliance: Yes
- Halogen-Free: Yes
- Net Weight: 5.418 grams
- Packaging Type: Bag
- Stackable: No
- Panel Mount: No
- Glow-Wire Capable: No
- Polarization: Option 1
- Packaged for automotive environment, durability and safety.
- Designed for high-density wiring harnesses, ensuring reliable connections in automotive electronics.
Buy the Buy Molex Automotive High Density Connector Part Number 0307001207 Online
Purchase the Molex 0307001207 automotive connector today for reliable high-density wiring solutions. Designed with a 2.54mm pitch and 20 circuits, this connector offers secure, polarized connections that withstand temperatures from -40°C to +100°C. Its durable polyester construction ensures long-lasting performance, making it ideal for automotive wiring harnesses. RoHS and ELV compliant, halogen-free, and easy to connect in tight spaces, this connector guarantees safety and reliability for automotive electronic systems. Order now for quality, precision, and durability.
Get Molex 0307001207 today—built for automotive precision, long-lasting durability, and high-density wiring performance.
Frequently Asked Questions
Where can I buy MOLEX 307001207?
You can click on the BUY or RFQ button to purchase 307001207 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 307001207?
You can download the 307001207 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 307001207?
MOLEX
