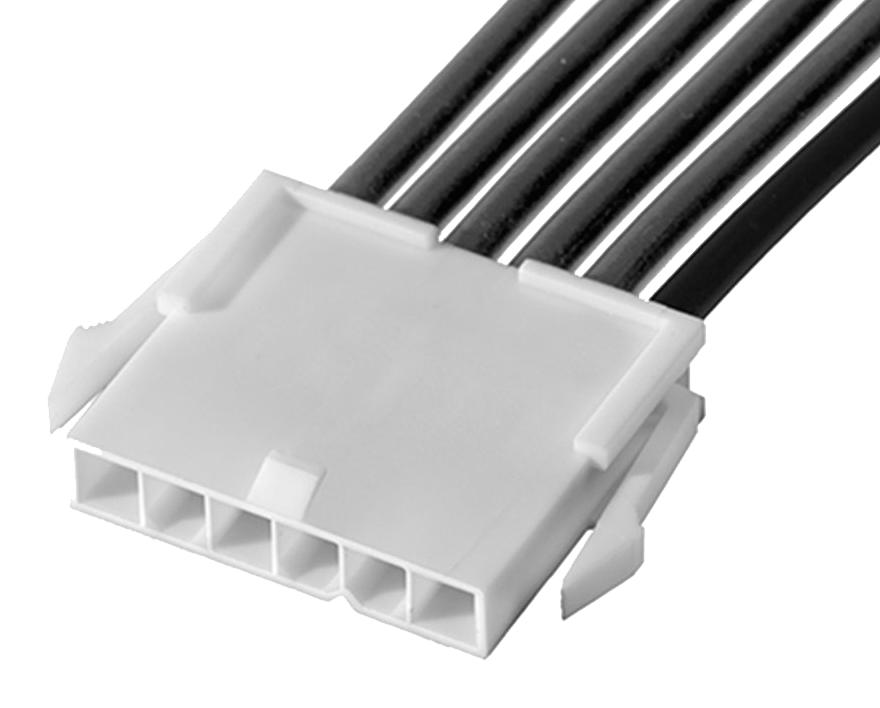

MOLEX 2153202061 Power Cable Assembly
This Mini-Fit Jr. female-to-female off-the-shelf cable assembly features a 150mm length with gold-plated contacts, designed for reliable power and signal connections. It incorporates 6 circuits in a single row, with black nylon housing for durability. The assembly supports crimp or compression termination styles, with a current capacity of 9.0A and a maximum voltage of 600V. Suitable for wire sizes 16 AWG, it ensures secure, high-quality electrical performance for power distribution and electronic applications.
MOLEX 2153202061 Power Cable Assembly Specifications:
- Series: Mini-Fit Jr.
- Product Family: Power, Wire-to-Wire
- Application: Connector to Connector
- Assembly Configuration: Discrete Wire Assembly
- Cable Length: 150.00mm
- Circuits: 6
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 26.530g
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 4.20mm
- Plating min - Mating: 0.762um
- Plating min - Termination: 0.762um
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- RoHS Compliance: Yes
- Halogen-Free: No
- Status: Active
Buy the Molex Series Mini-Fit Jr. Power Cable Assembly: 2153202061
Enhance your electronic projects with this Molex Mini-Fit Jr. power cable assembly, featuring a 150mm length, 6 circuits, gold-plated contacts, and a durable nylon housing. Ideal for power and signal connections, it supports 16 AWG wire, rated for 9A and 600V, ensuring reliable and secure performance. Perfect for connector-to-connector applications, this assembly offers easy crimp or compression termination styles, making installation quick and efficient. Elevate your electronic solutions with this high-quality, RoHS-compliant connector now available online.
Buy Molex 2153202061 power cable assembly now and experience unmatched reliability and high-performance electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 2153202061?
You can click on the BUY or RFQ button to purchase 2153202061 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153202061?
You can download the 2153202061 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153202061?
MOLEX
