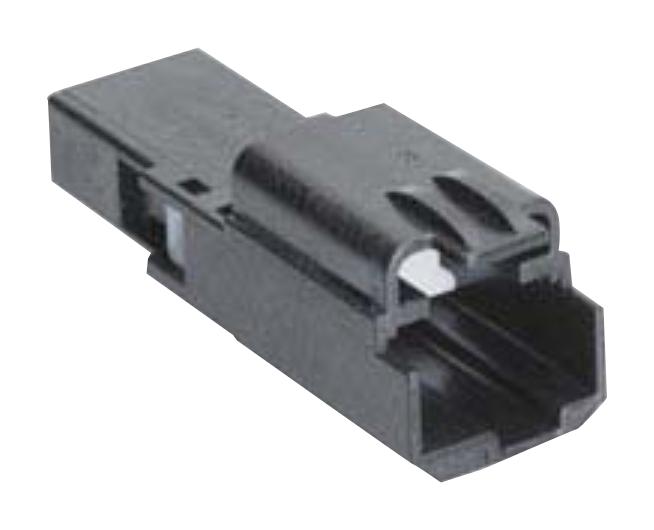

MOLEX 310671040 Power Connector
The H-DAC 64 is a 2.54mm pitch, unsealed, wire-to-wire connector system designed for power applications. This 3-way male housing assembly features a single row with polarization option A and black color. It is compliant with RoHS standards and suitable for environments requiring robust and reliable connections, operating within a temperature range of -40°C to +100°C. Constructed from modified polystyrene and polyester, it is halogen-free and UL-rated. Ideal for power distribution in electronic assemblies requiring high current capacity up to 11A per contact.
MOLEX 310671040 Power Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Number of Rows: 1
- Circuits (maximum): 3
- Color - Resin: Black
- Material - Resin: Modified Polystyrene, Polyester
- Temperature Range - Operating: -40°C to +100°C
- Current - Maximum per Contact: 11.0A, 9.0A
- RoHS Compliant: Yes
- UL Rated: Yes
- Halogen-Free: Yes
- Gender: Plug
- Applications: Power, Wire-to-Wire
- Lock to Mating Part: Yes
- Packaging Type: N/A
- Packaged Weight: 1.692 g
Buy the Buy Molex H-DAC 64 Part Number 0310671040 Online
Purchase the Molex H-DAC 64 Power Connector with 2.54mm pitch, designed for reliable power connections in electronic assemblies. This 3-way male housing assembly features polarization option A, operates from -40°C to +100°C, and supports up to 11A per contact for high current applications. Constructed from halogen-free, RoHS-compliant materials, it ensures safety and environmental standards. Ideal for power distribution, wire-to-wire, and professional electronic projects requiring robust, durable, and UL-rated components available online for quick delivery.
Get Molex H-DAC 64 Part Number 0310671040 today—built for power transmission and long-lasting durability.
