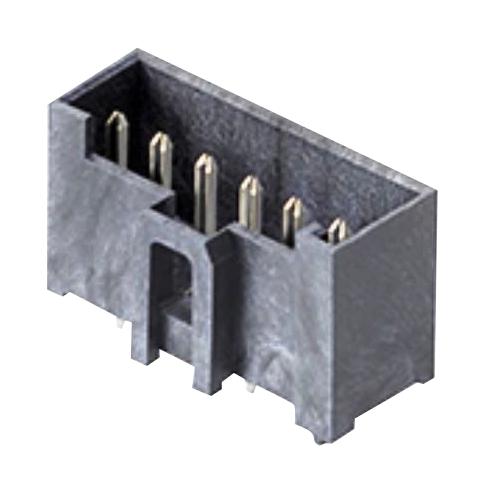

MOLEX 2074790004 L1NK 396 Header
The MOLEX 207479-0004 L1NK 396 Header is a robust and reliable connector solution for power and wire-to-board applications. Designed with a vertical orientation and fully shrouded construction, it ensures secure and protected connections. The tin plating provides excellent conductivity and corrosion resistance, while the RoHS compliance aligns with environmental standards. This connector is suitable for a wide range of industrial equipment, automation systems, and consumer electronics where dependable power transmission is critical. Its stackable design and keyed features simplify assembly and reduce the risk of mis-mating.
MOLEX 2074790004 L1NK 396 Header Specifications:
- overview: L1NK Connector System
- description: L1NK 396 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 4 Circuits, with Peg
- product_family: PCB Headers
- application: Power, Wire-to-Board
- current_max: 11.0A
- pitch_mating: 3.96mm
- circuits_loaded: 4
- circuits_maximum: 4
- color_resin: Black
- durability_mating_cycles: 25
- flammability: 94V-0
- glow_wire_capable: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Liquid Crystal Polymer
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.50mm
- packaging_type: Tray
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- surface_mount_compatible: No
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Through Hole
- voltage_max: 350V AC/DC
- datasheet_order_no: 987651-9951
- upc: 191130109890
- net_weight: 2.090/g
- pcb_thickness_recommended: 1.60mm
Buy the 207479-0004 MOLEX L1NK 396 Header | myMectronic
Purchase the MOLEX 207479-0004 L1NK 396 Header securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2074790004?
You can click on the BUY or RFQ button to purchase 2074790004 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2074790004?
You can download the 2074790004 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2074790004?
MOLEX
