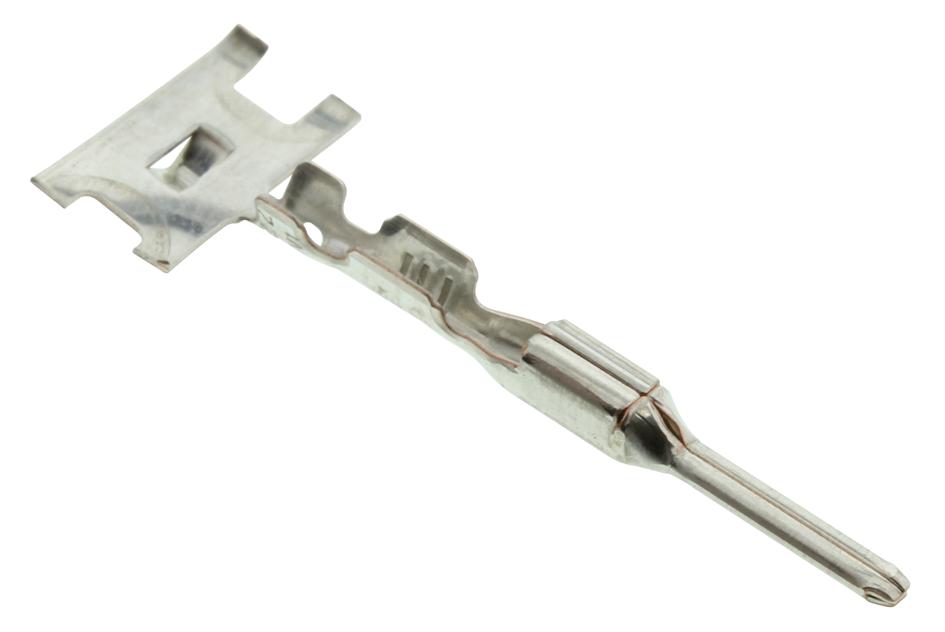

MOLEX 330000001 Automotive Connector
The MX150 connector series includes sealed and unsealed connectors suitable for automotive and commercial vehicle applications. These compact connectors feature a 1.50mm low insertion force terminal system, compatible with SAE and ISO wiring standards in single and dual row formats. Sealed versions have a matte-seal cap for environmental protection, while unsealed variants provide an ergonomic push surface for easier handling. Capable of supporting signal and power applications up to 22A, these connectors meet standards like USCAR-20, USCAR-2 Rev 4, and USCAR-21, ensuring high performance and reliability in demanding environments.
MOLEX 330000001 Automotive Connector Specifications:
- Series: MX150
- Application: Automotive, Commercial Vehicles
- Type: Sealed and Unsealed Connectors
- Terminal System: 1.50mm Low Insertion Force
- Wire Size: 14 AWG
- Wire Diameter: 2.70mm max.
- Material - Metal: High Performance Alloy (HPA)
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: Not specified
- Packaging Type: Reel
- Current - Maximum per Contact: 22A
- Voltage - Maximum: 22V DC
- Sealing Feature: Matte-seal cap (for sealed version)
- Environmental Standards: USCAR-20, USCAR-2 Rev 4, USCAR-21
- RoHS Compliant, ELV Compliant, REACH SVHC Not Contained
Buy the Buy Molex MX150 Series Part Number 330000001 Online
Enhance your projects with the Molex MX150 automotive connector series, featuring sealed and unsealed options with 1.50mm low insertion force terminals. These connectors support power and signal applications up to 22A, ensuring reliable connection in automotive and commercial vehicle environments. Designed for easy installation with ergonomic push surfaces and environmental sealing, they conform to industry standards such as USCAR-20 and USCAR-21. Perfect for demanding wiring tasks requiring durability, ease of use, and environmental protection, available easily online for quick procurement.
Order your Molex MX150 Series 330000001 connector today and enjoy reliable high-performance automotive and industrial wiring solutions.
Frequently Asked Questions
Where can I buy MOLEX 330000001?
You can click on the BUY or RFQ button to purchase 330000001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 330000001?
You can download the 330000001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 330000001?
MOLEX
