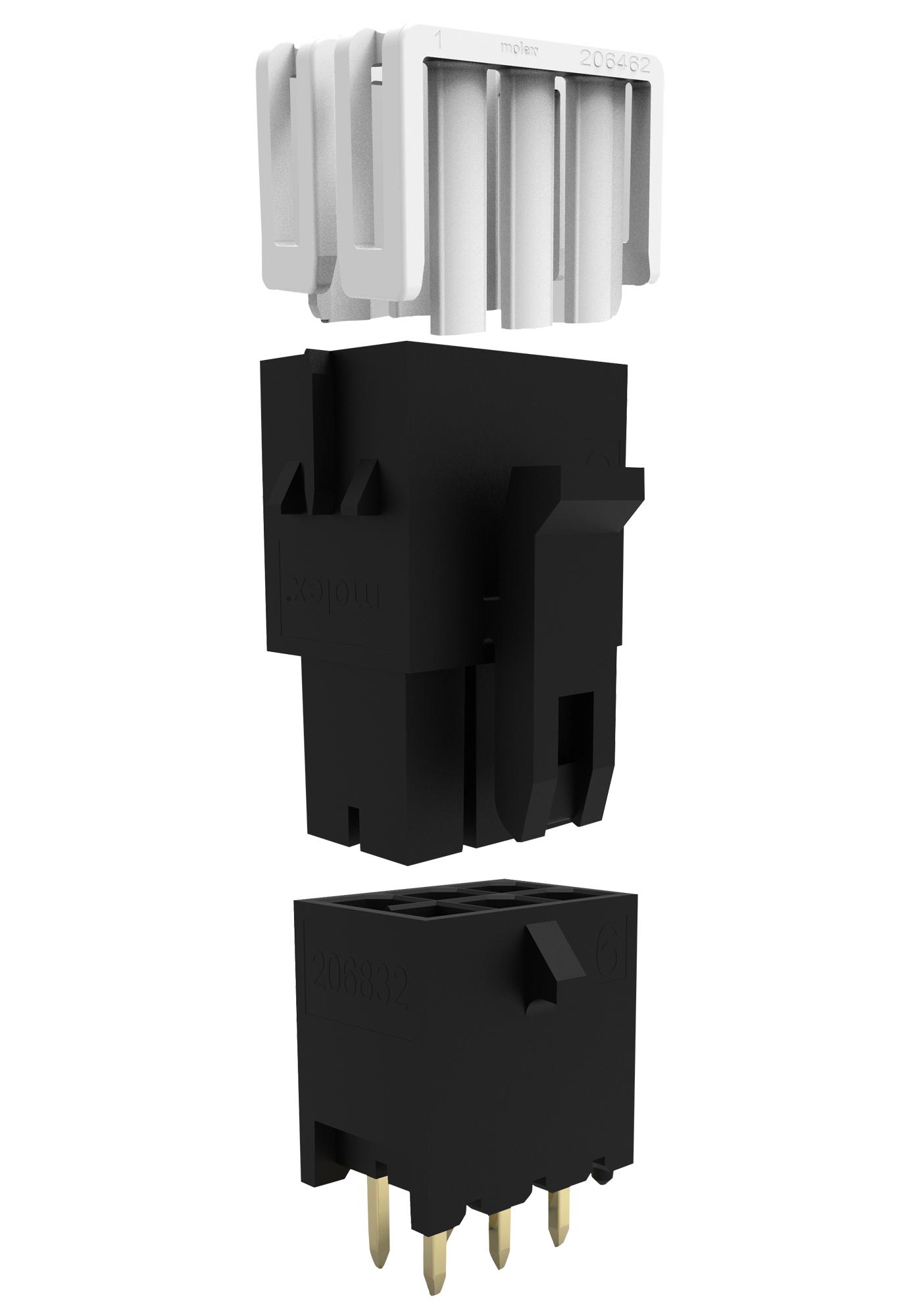

MOLEX 2068320201 Micro-Fit Connector
The Micro-Fit+ vertical header with a 3.00mm pitch is a dual-row connector designed for reliable wire-to-board electrical connections. It features tin over nickel plating for durability and corrosion resistance, supports up to 12.5A and 600V, and is UL 94V-0 glow-wire capable. Constructed from high copper alloy and liquid crystal polymer, it ensures high performance in demanding applications. This black, shrouded connector provides maximum 25 mating cycles, is polarization to mating part and PCB, and is suitable for various power and signal applications with through hole termination. Its operating temperature ranges from -40°C to +105°C.
MOLEX 2068320201 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Rows: 2
- Circuits: 2
- Maximum Circuits: 2
- Color - Resin: Black
- Durability (mating cycles max): 25
- Material - Metal: High Copper Alloy
- Material - Plating Mating: Tin over Nickel
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 0.317 grams
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Through Hole
- Current - Maximum per Contact: 12.5A
- Voltage - Maximum: 600V AC/DC
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Yes
- Physical Dimensions: 3.00mm pitch, 3.18mm height
- Glow-Wire Capable: Yes
Buy the Molex Series Micro-Fit+ 3mm Pitch Dual Row: 2068320201
Enhance your electronic assembly with the reliable Molex Micro-Fit+ dual-row connector featuring a 3.00mm pitch. Crafted with high-quality materials, this connector supports up to 12.5A and 600V, ensuring safety and performance. Its shrouded, polarized design allows for easy mating and replacement, while its UL glow-wire capability guarantees safety under high-temperature conditions. Suitable for power, control, and signal applications, it offers up to 25 mating cycles. Order online now and ensure your devices perform reliably in demanding environments.
Order your Molex Series Micro-Fit+ 3mm Pitch Dual Row connector today and give your power and signal projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MOLEX 2068320201?
You can click on the BUY or RFQ button to purchase 2068320201 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2068320201?
You can download the 2068320201 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2068320201?
MOLEX
