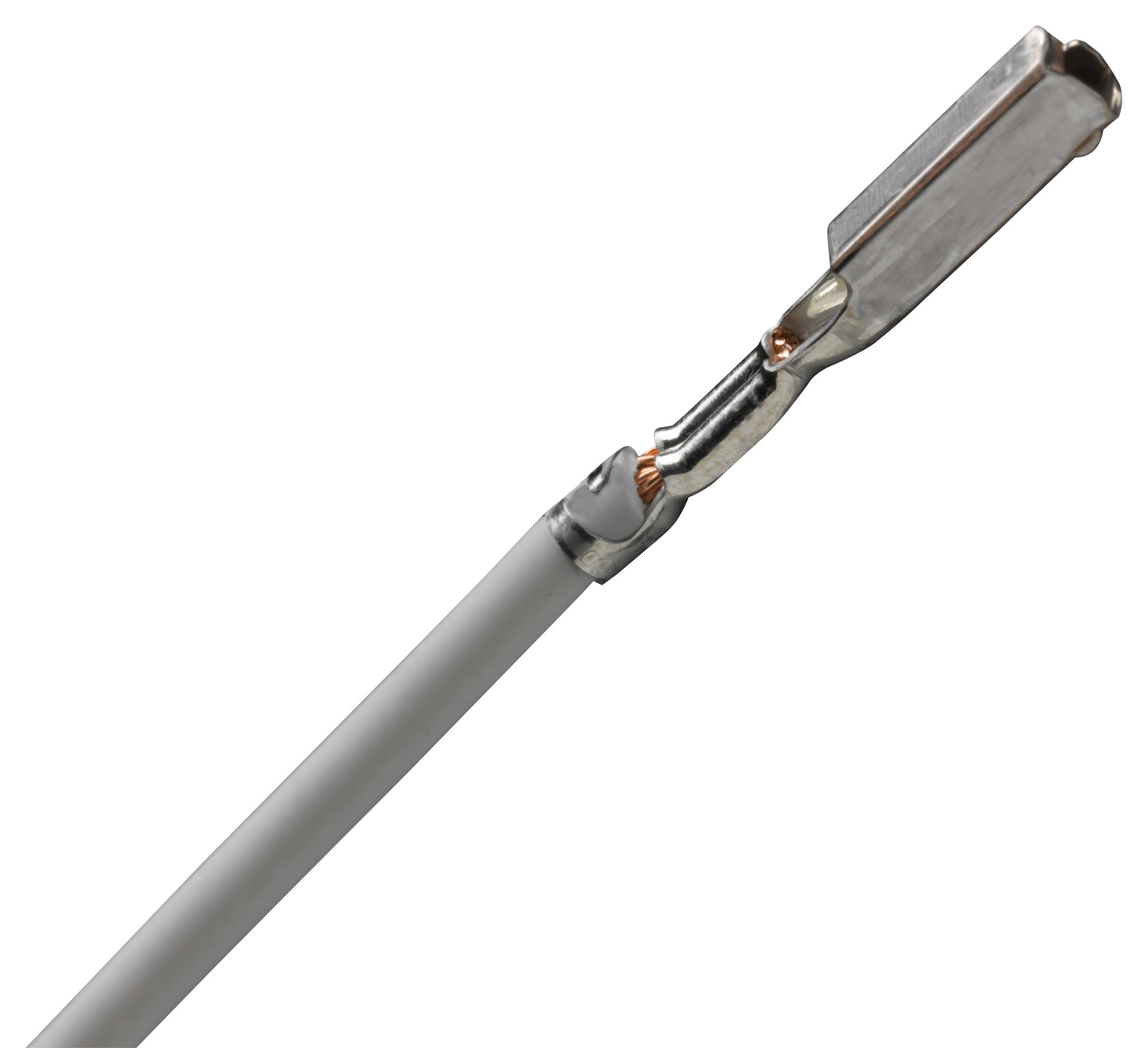

MOLEX 334670005 MX64 Terminal
The MOLEX 33467-0005 is a crucial component within the MX64 Sealed Connector series, engineered for robust wire-to-board and wire-to-wire connections. Its 2.54mm pitch and gold (Au) plating ensure excellent conductivity and corrosion resistance. Designed for use with MX123 and MX64 female receptacle housings, this terminal is ideal for applications requiring a secure and reliable electrical interface. It supports wire gauges from 18 to 20 AWG and is suitable for both automatic and semi-automatic crimping processes, with Left Reel Payoff terminals available for alternative applications.
MOLEX 334670005 MX64 Terminal Specifications:
- Product Family Series: 33467
- Application: Power, Wire-to-Board, Wire-to-Wire
- Crimp Quality Equipment Overview: Right Reel Payoff
- Gender: Female
- Material - Metal: Copper
- Material - Plating: Gold
- Plating min - Mating: 0.225/g
- Packaging Type: Reel
- Plating min - Mating (µm): 0.762µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.50-2.06mm
- Wire Size AWG: 18, 20
- Wire Size mm²: N/A
- Lead-freeProcess Capability: N/A
- EU ELV Compliant: Compliant
- EU RoHS: Compliant
- China RoHS: Not Relevant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Relevant
- Phthalates: Not Contained
- Use With: MX64 Sealed Single Row Crimp Housing 31403, MX123 Female Receptacle Housing 34566, 34576
