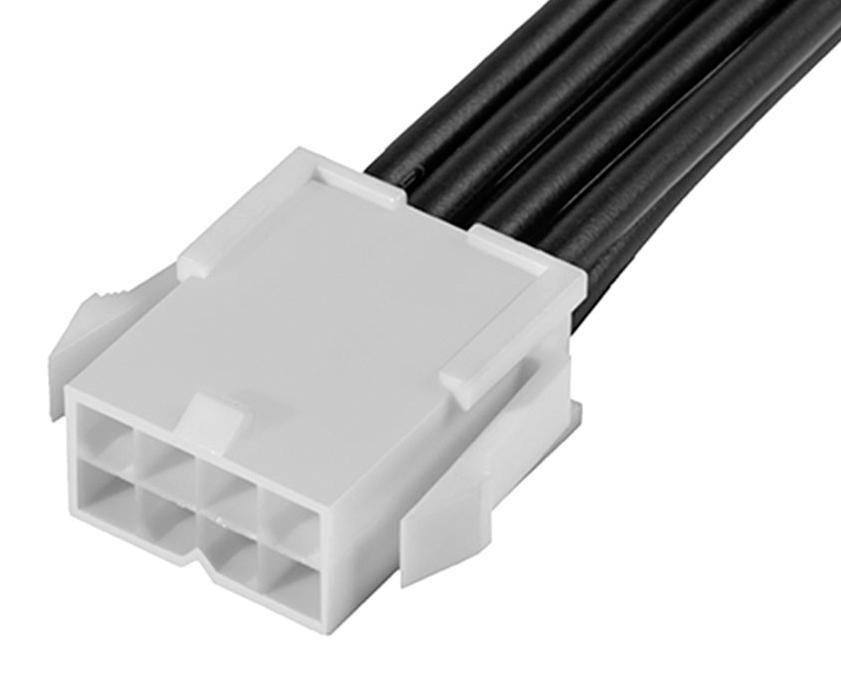

MOLEX 2153251081 Mini-Fit Jr. Cable Assembly
The MOLEX 215325-1081 is a Mini-Fit Jr. female-to-female cable assembly, ideal for power distribution in various applications including wire-to-board and wire-to-wire connections. It boasts a 150mm length, 8 circuits, and a dual-row design, ensuring robust and efficient power transfer. The tin plating on both mating and termination interfaces provides excellent conductivity and corrosion resistance, while the nylon resin material offers durability and insulation. This assembly is a reliable solution for connecting power sources to devices and equipment.
MOLEX 2153251081 Mini-Fit Jr. Cable Assembly Specifications:
- Product Family: Cable Assemblies
- Series: 215325
- Application: Power, Wire-to-Board, Wire-to-Wire Assembly
- Configuration: Dual Ended
- Connectors: Connector to Connector Mini-Fit Jr.
- Cable Length: 150.00mm
- Circuits (Loaded): 8
- Color: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 34.689/g
- Number of Rows: 2
- Pitch - Mating Interface: 4.20mm
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.889µm
- Single Ended: No
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- Mates With: ['5559', '5566', '5566', '5569', '5569', '43810', '44068', '44281', '87427', '42404', '42440']
Buy the 215325-1081 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the MOLEX 215325-1081 Mini-Fit Jr. cable assembly securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153251081?
You can click on the BUY or RFQ button to purchase 2153251081 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153251081?
You can download the 2153251081 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153251081?
MOLEX
