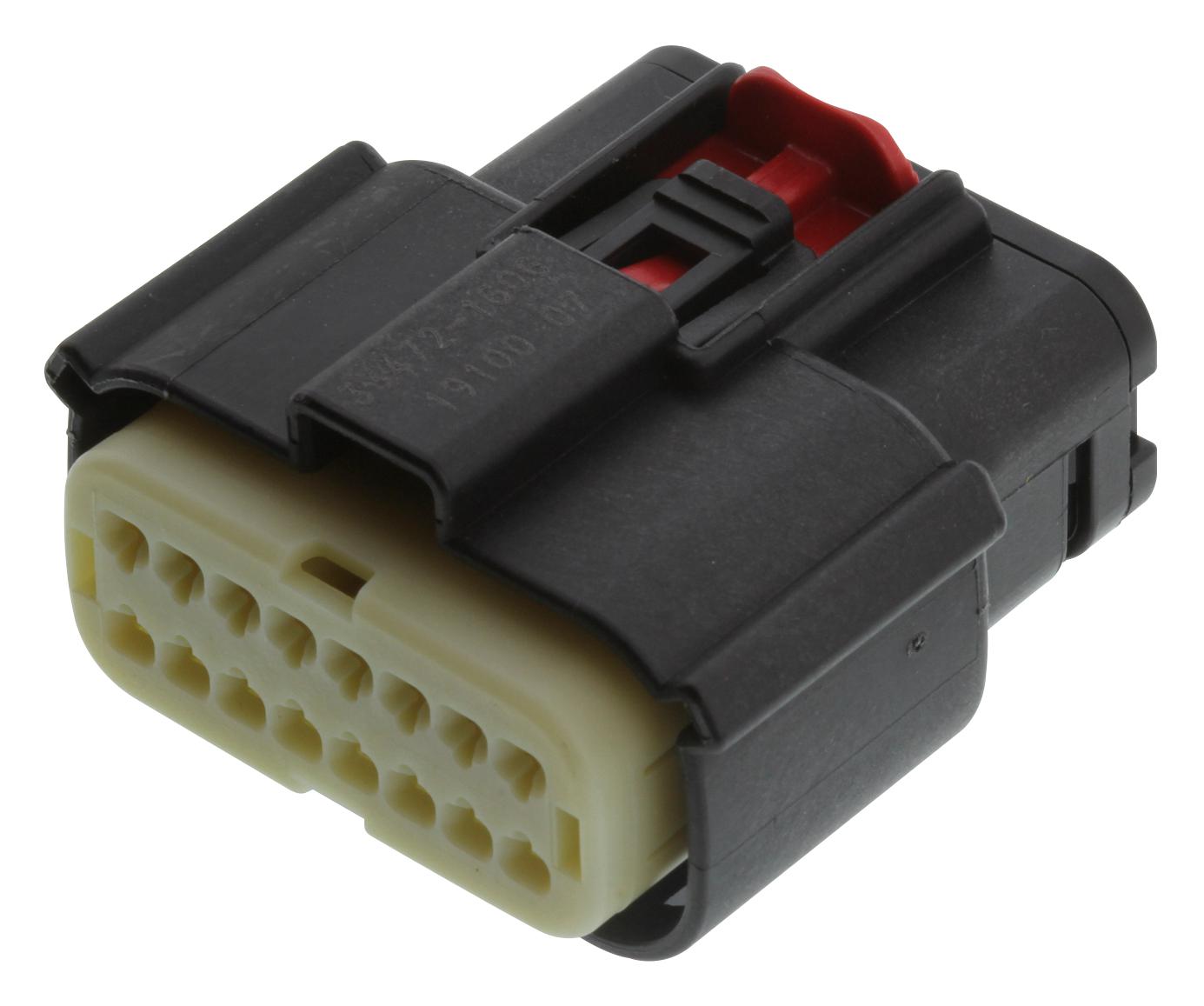

MOLEX 334721606 Sealed Female Connector
The MOLEX 33472-1606 is a robust sealed female connector within the MX150 series, engineered for demanding applications such as automotive, industrial equipment, and power distribution systems. This connector offers 16 circuits, ensuring ample capacity for various wiring configurations. It incorporates polarization and connector position assurance (CPA) features, guaranteeing correct mating and preventing accidental disconnections. The black, modified polystyrene resin construction provides durability and resistance to environmental factors. Its design facilitates secure wire-to-board and wire-to-wire connections, contributing to the overall reliability of the system. The connector is compatible with MX150 male connectors and various terminals and backshells, offering flexibility in system design.
MOLEX 334721606 Sealed Female Connector Specifications:
- circuits_maximum: 16
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Modified Polystyrene
- alloy: N/A
- net_weight_g: 18.400
- number_of_rows: 2
- packaging_type: Individual Cell Panel Mount
- pitch_mating_interface_mm: 3.50
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40 to +125
- lead_free_process_capability: N/A
- eu_elv_compliant: Yes
- eu_rohs_compliant: Yes
- china_rohs_compliant: Yes
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- series: 33472
- mates_with: MX150 Male Sealed Connector, 33482 MX150 Male Bulkhead Twist-Lock Sealed Connector 348408410
